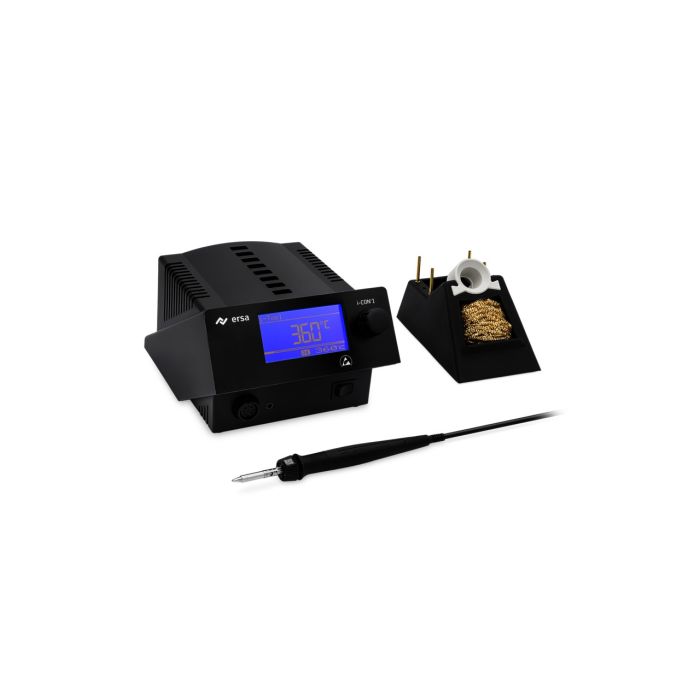

ERSA - 0IC1105A - i-CON 1 MK2 soldering station with i-TOOL MK2, 150 W, antistatic
Lei 2,434.00
Lei 2,011.57
In stock
Only 3 left
SKU
0IC1105A
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Digital soldering station i-CON 1 MK2, 150 W, ESD-safe, delivered with i-TOOL MK2 soldering iron, Tip'n'Turn chisel tip 1.6 mm and holder. Successor of the discontinued i-CON 1 (0IC1100A).
This variant: 0IC1105A = i-CON 1 MK2 control station + i-TOOL MK2 soldering iron 150 W (0105CDJ) + chisel tip 1.6 mm 0142CDLF16 + holder 0A59. Uses soldering tip series 142 (Tip'n'Turn). Other versions: 0IC1105A0C (with interface), 0IC1135A (control station only, without tool).
The i-CON 1 MK2 is suitable for all SMT and THT soldering tasks in electronics production, rework and R&D. The powerful i-TOOL MK2 provides sufficient energy for high-mass solder joints; a wide range of i-Tips allows the tool to be adapted quickly to the current soldering task.
- Digital soldering station with ergonomic and powerful 150 W i-TOOL MK2 soldering iron
- Motion sensor in the handpiece for energy- and tip-saving standby mode
- Easy operation: intuitive one-touch push button and large multifunctional display
- Optical information when the optimal process window is reached
- Tip'n'Turn: soldering tip change easier and faster than ever, tip series 142
- Antistatic (ESD-safe) design
- THT and SMD soldering, from fine to high-power applications
Documentation: Ersa Soldering Tools Catalog 2026
Write Your Own Review
| Manufacturer | ERSA |
|---|---|
| Manufacturer code | 0IC1105A |
| Order Unit | Pce |
| Power Rating in W | 150 |
| Temperature range in °C | 150 - 450°C |
| Nominal voltage in V AC | 230 |
| Secondary voltage in V | 24 |
| Weight Kg | 3.0 |
| Dimensions (W x D x H) in mm | 150 x 175 x 105 |
| Antistatic Design | Yes |
| Digital display | Yes |
| Heat up time in sec | 9 |
| Test symbol | CE, VDE |
| Power consumption standby in W | 15 |
| Soldering tip series | 142 |
