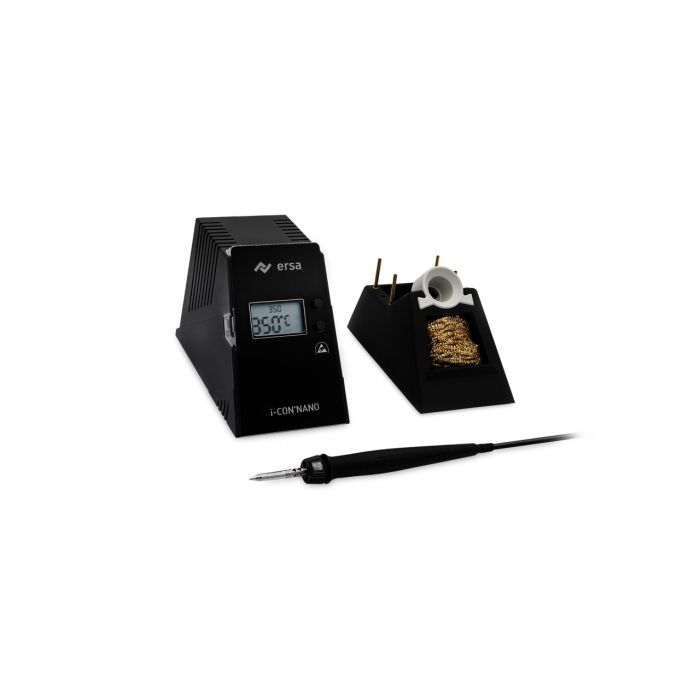

ERSA - 0IC1205A - i-CON NANO MK2 soldering station with i-TOOL NANO MK2, 80 W, antistatic
Lei 1,477.00
Lei 1,220.66
In stock
Only 3 left
SKU
0IC1205A
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact digital soldering station i-CON NANO MK2, 80 W, ESD-safe, footprint 145 x 80 mm, with i-TOOL NANO MK2 iron and Tip'n'Turn tips (series 142). Successor of the discontinued i-CON NANO (0IC1200A).
This variant: 0IC1205A = i-CON NANO MK2 control station + i-TOOL NANO MK2 soldering iron (0125CDK) + soldering tip + holder. Uses soldering tip series 142 (Tip'n'Turn). Other versions: 0IC1205A58 (with holder 0A58), 0IC1235A (control station only, without tool).
The i-CON NANO MK2 suits all SMT and THT soldering applications in production, repair and R&D. With the i-TOOL NANO MK2 soldering iron the tip series 142 can be used.
- Digital soldering station with ultra-light and ergonomic i-TOOL NANO MK2 soldering iron
- Very small footprint (145 x 80 mm), saves valuable bench space
- Three fixed temperature settings or continuous adjustment from 150 to 450 °C
- Three selectable energy levels
- Automatic standby and shut-down mode for lower energy consumption and longer tip life
- Wide range of cost-effective, exchangeable long-life soldering tips (series 142, Tip'n'Turn)
- Complete parameter setting via PC software and micro-SD card
- Antistatic (ESD-safe) design
Documentation: Ersa Soldering Tools Catalog 2026
Write Your Own Review
| Manufacturer | ERSA |
|---|---|
| Manufacturer code | 0IC1205A |
| Order Unit | Pce |
| Power Rating in W | 80 |
| Temperature range in °C | 150 - 450°C |
| Nominal voltage in V AC | 230 |
| Secondary voltage in V | 16.5 |
| Weight Kg | 1.05 |
| Dimensions (W x D x H) in mm | 80 x 145 x 103 |
| Antistatic Design | Yes |
| Digital display | Yes |
| Heat up time in sec | 9 |
| Test symbol | CE, VDE |
| Soldering tip series | 142 |
