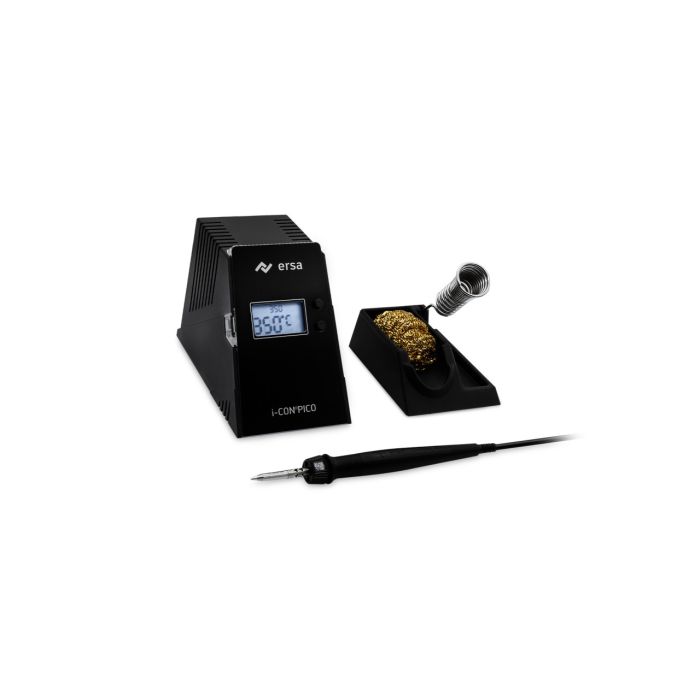

ERSA - 0IC1305 - i-CON PICO MK2 soldering station with i-TOOL PICO MK2, 80 W, non-antistatic
Lei 1,108.00
Lei 915.70
In stock
SKU
0IC1305
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact digital soldering station i-CON PICO MK2, 80 W, non-antistatic, footprint 145 x 80 mm, with i-TOOL PICO MK2 iron and Tip'n'Turn tips (series 142). Entry-level station for hobby and service. Successor of the discontinued i-CON PICO (0IC1300).
This variant: 0IC1305 = i-CON PICO MK2 control station + i-TOOL PICO MK2 soldering iron (0135CDK) + soldering tip + holder. Uses soldering tip series 142 (Tip'n'Turn). Non-antistatic version; for ESD-safe work choose the i-CON NANO MK2 (0IC1205A).
The i-CON PICO MK2 is the optimal station to start with for all hobbyists. It is suitable for all SMT and THT soldering tasks where ESD safety is not required. With its particularly compact footprint it still finds room on any workbench and surprises with its soldering performance.
- Digital soldering station with ultra-light and ergonomic i-TOOL PICO MK2 soldering iron
- Very small footprint (145 x 80 mm), saves valuable desk space
- Three fixed temperatures or adjustable temperature setting from 150 to 450 °C
- Settable energy levels
- Automatic standby and shut-down mode to save energy and extend tip life
- Wide range of exchangeable and price-attractive soldering tips (series 142, Tip'n'Turn)
- Parameter setting via PC software and micro-SD card
- Not antistatic: for hobby and service use where ESD safety is not required
Documentation: Ersa Soldering Tools Catalog 2026
Write Your Own Review
| Manufacturer | ERSA |
|---|---|
| Manufacturer code | 0IC1305 |
| Order Unit | Pce |
| Power Rating in W | 80 |
| Temperature range in °C | 150 - 450°C |
| Nominal voltage in V AC | 230 |
| Secondary voltage in V | 16.5 |
| Weight Kg | 1.05 |
| Dimensions (W x D x H) in mm | 80 x 145 x 103 |
| Antistatic Design | No |
| Digital display | Yes |
| Heat up time in sec | 9 |
| Test symbol | CE, VDE |
| Soldering tip series | 142 |
