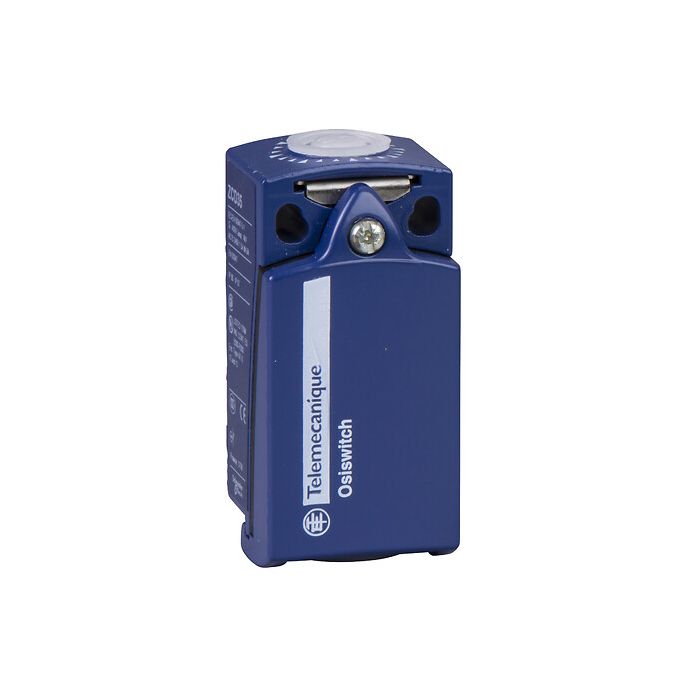

TELEMECANIQUE SENSORS - ZCP69 - Limit switch body, Limit switches XC Standard, ZCP, compact, 2NC, snap action
Lei 520.00
Lei 429.75
In stock
SKU
ZCP69
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCP, compact, 2NC, snap action
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard compact |
| Product or component type | Limit switch body |
| Device short name | ZCP |
| Design | Compact |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 2 NC |
| Contact operation | Snap action |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Contacts insulation form | Zb |
| Contacts material | Gold plated contacts |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Environment
| Product compatibility | XCKP |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 4.2 CENTIMETER |
| Package 1 length | 7.6 CENTIMETER |
| Package 1 weight | 0.061 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 81 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.396 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 4.2 CENTIMETER |
| Package 3 width | 7.6 CENTIMETER |
| Package 3 length | 4.2 CENTIMETER |
| Package 3 weight | 0.061 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCP69 |
| Order Unit | Pce |
