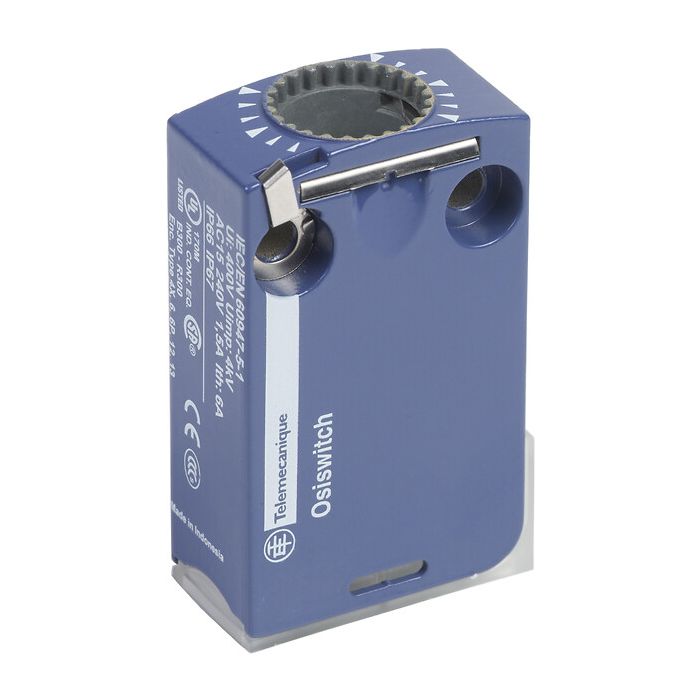

TELEMECANIQUE SENSORS - ZCMD65 - Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, slow break
Lei 256.00
Lei 211.57
In stock
SKU
ZCMD65
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, slow break
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCMD |
| Design | Miniature |
| Body type | Plug-in body |
| Body material | Zamak |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
Complementary
| Product compatibility | XCMD |
|---|---|
| Electrical connection | Plug-in without pre-cabled connection |
| Contacts insulation form | Zb |
| Contacts material | Gold plated contacts |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 1.8 CENTIMETER |
| Package 1 width | 16 CENTIMETER |
| Package 1 length | 7 CENTIMETER |
| Package 1 weight | 0.053 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 90 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 15 CENTIMETER |
| Package 2 weight | 5.445 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 2880 |
| Package 3 height | 77 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 178.56 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCMD65 |
| Order Unit | Pce |
