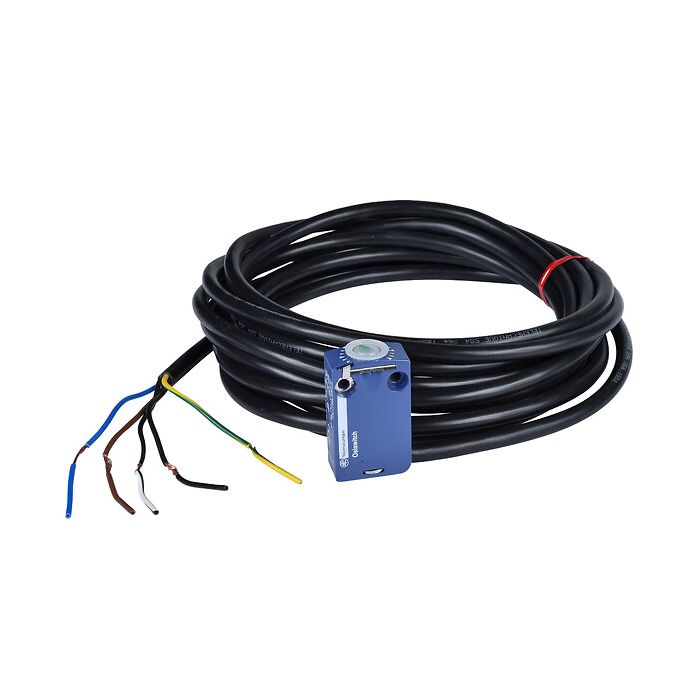

TELEMECANIQUE SENSORS - ZCMD29L5 - Limit switch body, Limit switches XC Standard, ZCMD, 2NC, silver, snap action, connection, 5 m
Lei 437.00
Lei 361.16
In stock
SKU
ZCMD29L5
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCMD, 2NC, silver, snap action, connection, 5 m
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCMD |
| Design | Miniature |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 2 NC |
| Contact operation | Snap action |
Complementary
| Product compatibility | XCMD |
|---|---|
| Electrical connection | Removable cable |
| Cable composition | 5 x 0.75 mm² |
| Contacts insulation form | Zb |
| Wire insulation material | PvR |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 19 CENTIMETER |
| Package 1 length | 20 CENTIMETER |
| Package 1 weight | 0.5 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 20 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 30 CENTIMETER |
| Package 2 weight | 8.928 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 3.5 CENTIMETER |
| Package 3 width | 19 CENTIMETER |
| Package 3 length | 20 CENTIMETER |
| Package 3 weight | 0.5 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCMD29L5 |
| Order Unit | Pce |
