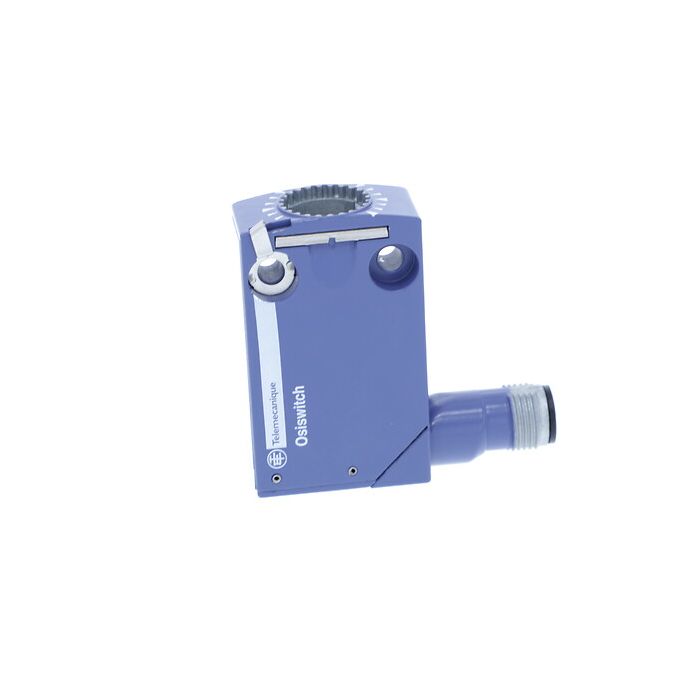

TELEMECANIQUE SENSORS - ZCMD21M12 - Limit switch body, Limit switches XC Standard, ZCMD, 1C/O, silver, snap action, connection, M12
Lei 323.00
Lei 266.94
In stock
SKU
ZCMD21M12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCMD, 1C/O, silver, snap action, connection, M12
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCMD |
| Design | Miniature |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 1 C/O |
| Contact operation | Snap action |
Complementary
| Product compatibility | XCMD |
|---|---|
| Electrical connection | Male connector M12, 4 pins |
| Contacts insulation form | Za |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 1.7 CENTIMETER |
| Package 1 width | 5.3 CENTIMETER |
| Package 1 length | 5.3 CENTIMETER |
| Package 1 weight | 0.076 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 60 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.785 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 1.7 CENTIMETER |
| Package 3 width | 5.3 CENTIMETER |
| Package 3 length | 5.3 CENTIMETER |
| Package 3 weight | 0.076 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCMD21M12 |
| Order Unit | Pce |
