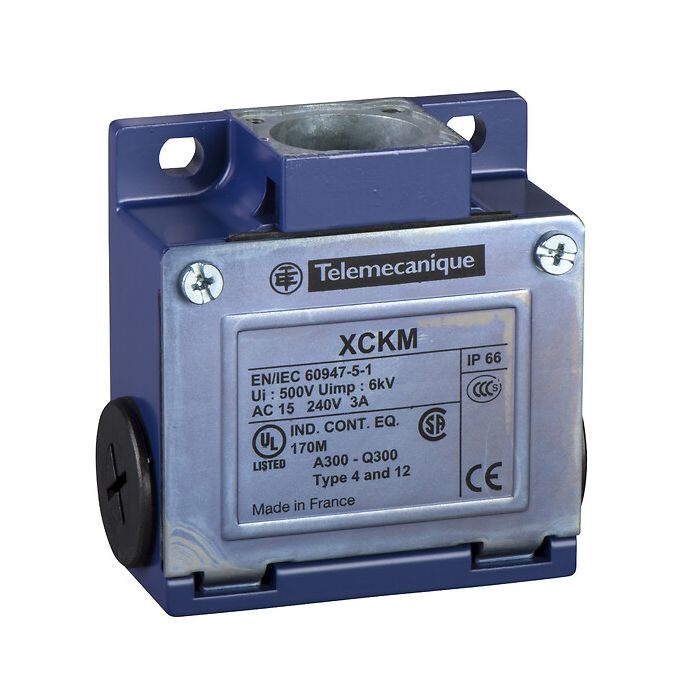

TELEMECANIQUE SENSORS - ZCKM7 - Limit switch body, Limit switches XC Standard, ZCKM, 2NC, slow break, Pg11
Lei 194.00
Lei 160.33
In stock
SKU
ZCKM7
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCKM, 2NC, slow break, Pg11
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKM |
| Body type | Fixed |
| Product compatibility | XCKM |
| Body material | Metal |
| Cable entry | 3 entries tapped for Pg 11 cable gland |
| Contacts type and composition | 2 NC |
| Contact operation | Slow-break, simultaneous |
| Contacts material | Silver plated contacts |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Positive opening | With |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (31-32)NC (33-34)NO |
Environment
| IP degree of protection | IP66 |
|---|---|
| IK degree of protection | IK05 |
| Environmental characteristic | Standard environment |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.2 CENTIMETER |
| Package 1 width | 6.4 CENTIMETER |
| Package 1 length | 9.8 CENTIMETER |
| Package 1 weight | 0.236 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 40 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 9.684 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 6.5 CENTIMETER |
| Package 3 width | 3.3 CENTIMETER |
| Package 3 length | 8.2 CENTIMETER |
| Package 3 weight | 0.236 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKM7 |
| Order Unit | Pce |
