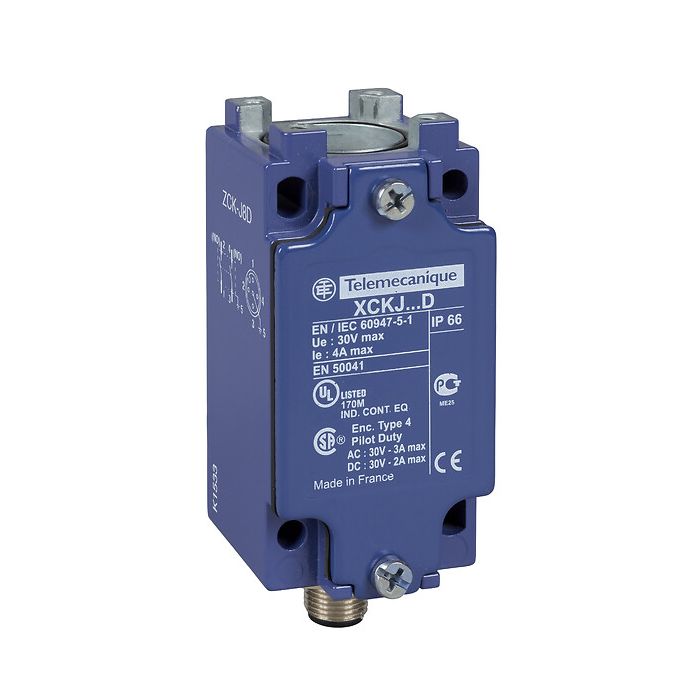

TELEMECANIQUE SENSORS - ZCKJ8D - Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2 NO, slow break, M12
Lei 401.00
Lei 331.40
In stock
SKU
ZCKJ8D
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2 NO, slow break, M12
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKJ |
| Body type | Fixed |
| Product compatibility | XCKJ |
| Body material | Metal |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break, simultaneous |
| Contacts material | Silver plated contacts |
Complementary
| Electrical connection | Male connector M12, 5 pins |
|---|---|
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (13-14)NO (31-32)NC (33-34)NO |
Environment
| IP degree of protection | IP66 |
|---|---|
| IK degree of protection | IK07 |
| Environmental characteristic | Standard environment |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 6.8 CENTIMETER |
| Package 1 width | 4.1 CENTIMETER |
| Package 1 length | 12.6 CENTIMETER |
| Package 1 weight | 0.311 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 6.8 CENTIMETER |
| Package 2 width | 12.6 CENTIMETER |
| Package 2 length | 4.1 CENTIMETER |
| Package 2 weight | 0.311 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKJ8D |
| Order Unit | Pce |
