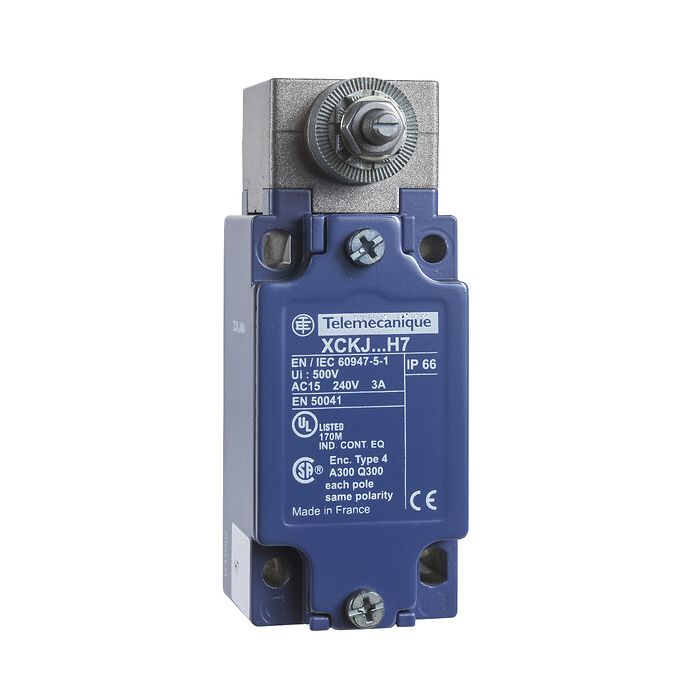

TELEMECANIQUE SENSORS - ZCKJ404H29 - Limit switch body with spring return rotary head, Limit switches XC Standard, ZCKJ, w/o lever, fixed, 2C/O, snap, M20
Lei 546.00
Lei 451.24
In stock
SKU
ZCKJ404H29
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body with spring return rotary head, Limit switches XC Standard, ZCKJ, w/o lever, fixed, 2C/O, snap, M20
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body with spring return rotary head |
| Device short name | ZCKJ |
| Body type | Fixed |
| Product compatibility | XCKJ |
| Body material | Metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
Complementary
| Switch actuation | From left and right |
|---|---|
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
Environment
| IP degree of protection | IP66 |
|---|---|
| IK degree of protection | IK07 |
| Environmental characteristic | Low temperature |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4.3 CENTIMETER |
| Package 1 width | 12.8 CENTIMETER |
| Package 1 length | 6.7 CENTIMETER |
| Package 1 weight | 0.474 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 9 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 14.8 CENTIMETER |
| Package 2 length | 39.8 CENTIMETER |
| Package 2 weight | 4.617 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 18 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 9.038 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKJ404H29 |
| Order Unit | Pce |
