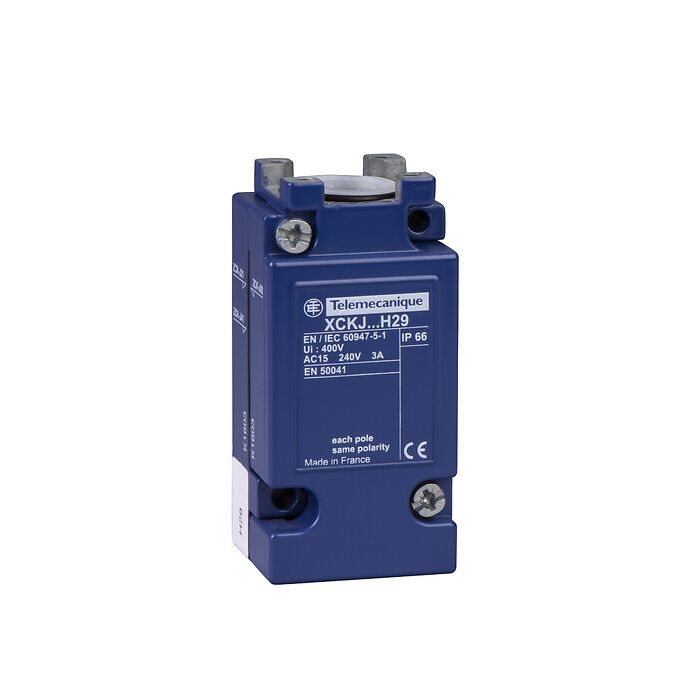

TELEMECANIQUE SENSORS - ZCKJ215H29 - Limit switch body, Limit switches XC Standard, ZCKJ, plug in, w/o display, 2C/O, snap action, M20
Lei 547.00
Lei 452.07
In stock
SKU
ZCKJ215H29
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCKJ, plug in, w/o display, 2C/O, snap action, M20
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKJ |
| Body type | Plug-in body |
| Product compatibility | XCKJ |
| Body material | Metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
|---|---|
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
Environment
| IP degree of protection | IP66 |
|---|---|
| IK degree of protection | IK07 |
| Environmental characteristic | High temperature low temperature standard environment |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 7.7 CENTIMETER |
| Package 1 width | 4 CENTIMETER |
| Package 1 length | 4.4 CENTIMETER |
| Package 1 weight | 0.3 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 7.7 CENTIMETER |
| Package 2 width | 4 CENTIMETER |
| Package 2 length | 4.4 CENTIMETER |
| Package 2 weight | 0.31 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 960 |
| Package 3 height | 76 CENTIMETER |
| Package 3 width | 80 CENTIMETER |
| Package 3 length | 60 CENTIMETER |
| Package 3 weight | 104.539 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKJ215H29 |
| Order Unit | Pce |
