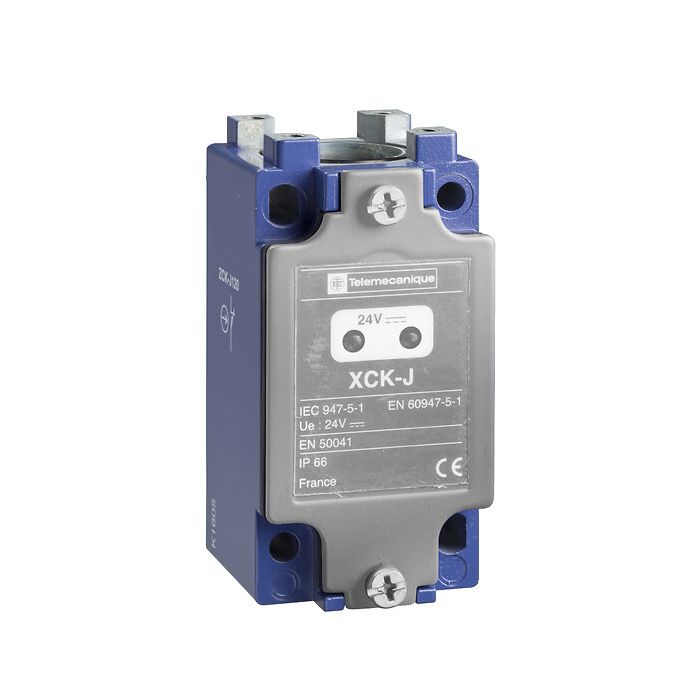

TELEMECANIQUE SENSORS - ZCKJ120 - Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, Pg13
Lei 205.00
Lei 169.42
In stock
SKU
ZCKJ120
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, Pg13
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZCKJ |
| Body type | Fixed |
| Product compatibility | XCKJ |
| Body material | Metal |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Positive opening | With |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Electrical circuit type | Indicator light module 2 LED AC, 110/240 V (95...264 V) service life: 100000 h |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
Environment
| IP degree of protection | IP66 |
|---|---|
| IK degree of protection | IK07 |
| Environmental characteristic | Standard environment |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 length | 9.5 CENTIMETER |
| Package 1 weight | 0.294 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 24 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 8.006 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 9.5 CENTIMETER |
| Package 3 width | 5 CENTIMETER |
| Package 3 length | 5 CENTIMETER |
| Package 3 weight | 0.315 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKJ120 |
| Order Unit | Pce |
