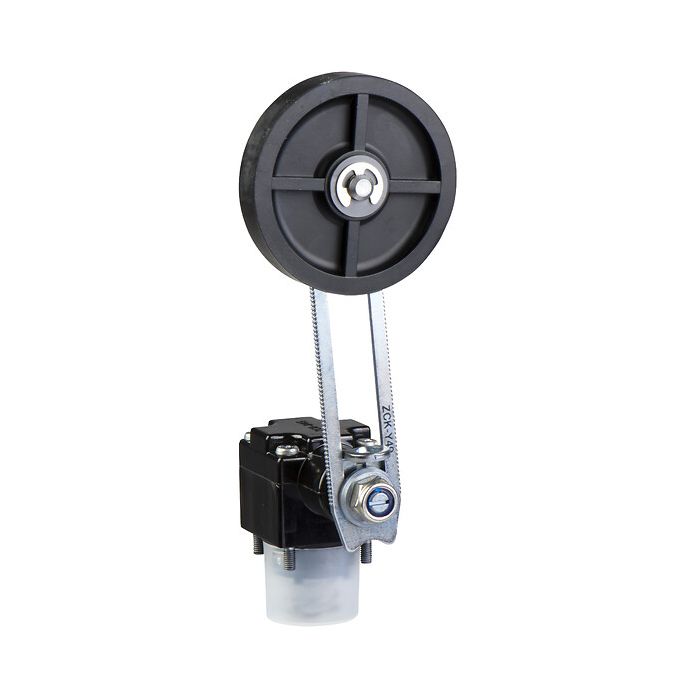

TELEMECANIQUE SENSORS - ZCKD49 - Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever Ø 50 mm variable length
Lei 258.00
Lei 213.22
In stock
SKU
ZCKD49
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever Ø 50 mm variable length
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch head |
| Device short name | ZCKD |
| Head type | Rotary head |
| Product compatibility | XCKS |
| Movement of operating head | Rotary |
| Type of operator | Roller lever spring return elastomer (adjustable and roller diameter 50 mm) |
| Type of approach | Lateral approach, 2 directions |
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Positive opening | Without |
| Head material | Plastic |
Environment
| Environmental characteristic | Standard environment |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5.3 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 15 CENTIMETER |
| Package 1 weight | 0.125 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 11 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.681 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCKD49 |
| Order Unit | Pce |
