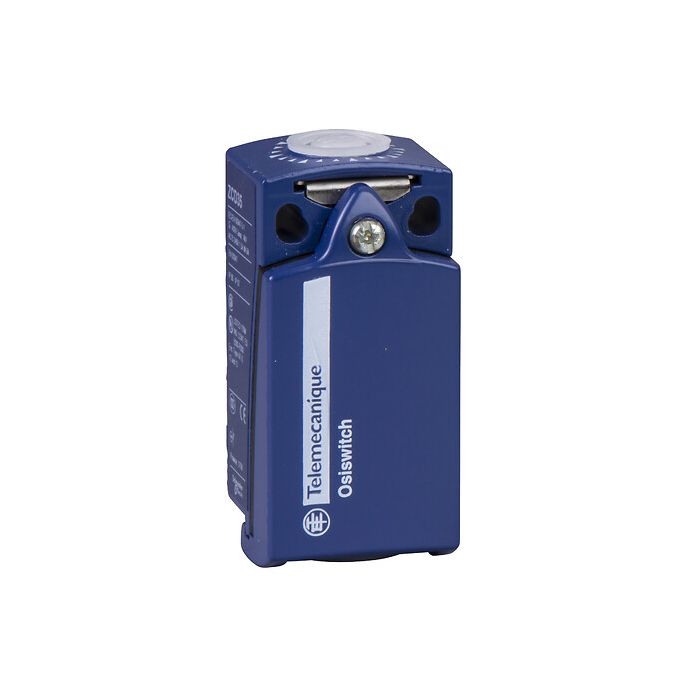

TELEMECANIQUE SENSORS - ZCD27 - Limit switch body, Limit switches XC Standard, ZCD, compact, 2NC, slow break
Lei 153.00
Lei 126.45
In stock
SKU
ZCD27
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZCD, compact, 2NC, slow break
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard compact |
| Product or component type | Limit switch body |
| Device short name | ZCD |
| Design | Compact |
| Body type | Fixed |
| Body material | Zamak |
| Contacts type and composition | 2 NC |
| Contact operation | Slow-break, simultaneous |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Contacts insulation form | Zb |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Environment
| Product compatibility | XCKD |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4.2 CENTIMETER |
| Package 1 width | 4.2 CENTIMETER |
| Package 1 length | 7.6 CENTIMETER |
| Package 1 weight | 0.139 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 40 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.785 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 58 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 8.486 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCD27 |
| Order Unit | Pce |
