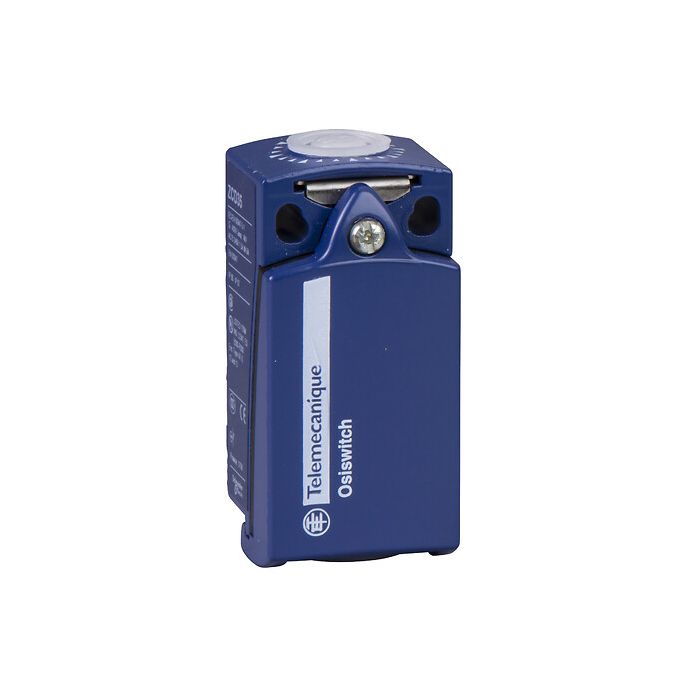

TELEMECANIQUE SENSORS - ZCD26M12 - Limit switch body, Limit switches XC Standard, metal , 2 poles slow break before make M12
Lei 349.00
Lei 288.43
In stock
SKU
ZCD26M12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, metal , 2 poles slow break before make M12
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard compact |
| Product or component type | Limit switch body |
| Device short name | ZCD |
| Design | Compact |
| Body type | Fixed |
| Body material | Metal |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break, make before break |
Complementary
| Electrical connection | Screw-clamp terminals M12, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Contacts insulation form | Zb |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Contact code designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
Environment
| Product compatibility | XCKD |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.4 CENTIMETER |
| Package 1 width | 10 CENTIMETER |
| Package 1 length | 3.3 CENTIMETER |
| Package 1 weight | 0.163 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 22 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.811 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZCD26M12 |
| Order Unit | Pce |
