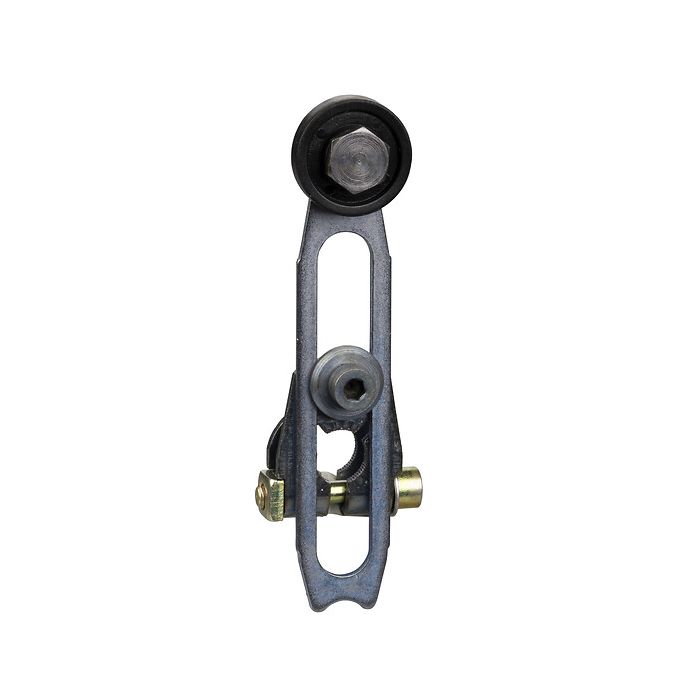

TELEMECANIQUE SENSORS - ZC2JY31H2 - Limit switch lever, Limit switches XC Standard, ZC2JY, thermoplastic plastic roller var. length, -40...70 °C
Lei 120.00
Lei 99.17
In stock
SKU
ZC2JY31H2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch lever, Limit switches XC Standard, ZC2JY, thermoplastic plastic roller var. length, -40...70 °C
Main
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch lever |
| Device short name | ZC2J |
| Product compatibility | XC2J |
| Movement of operating head | Rotary |
| Type of operator | Roller lever spring return thermoplastic (variable length) |
| Type of approach | Lateral approach |
Complementary
| Switch actuation | By 30° cam |
|---|---|
| Positive opening | Without |
Environment
| Environmental characteristic | Low temperature standard environment |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 1.7 CENTIMETER |
| Package 1 width | 3.5 CENTIMETER |
| Package 1 length | 4.9 CENTIMETER |
| Package 1 weight | 0.001 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZC2JY31H2 |
| Order Unit | Pce |
