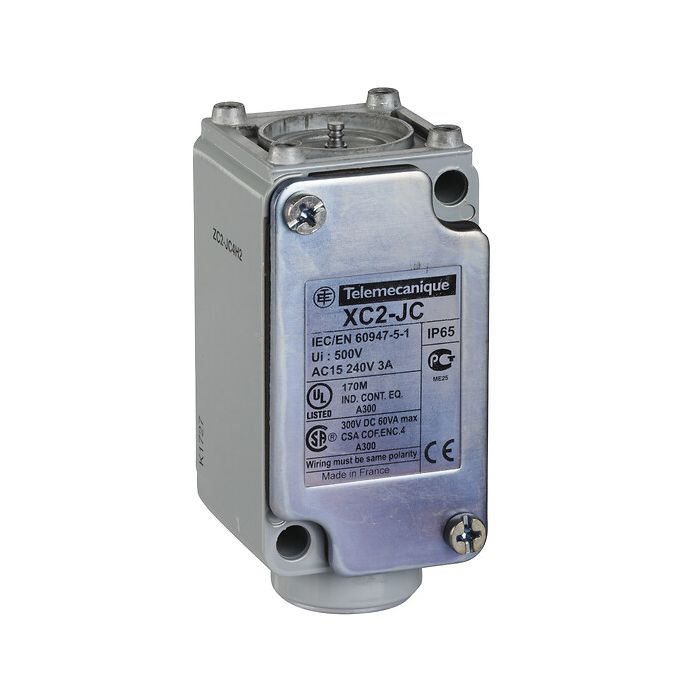

TELEMECANIQUE SENSORS - ZC2JC4H2 - Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 2C/O, M20
Lei 1,447.00
Lei 1,195.87
In stock
SKU
ZC2JC4H2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch body, Limit switches XC Standard, ZC2J, fixed, without display, 2C/O, M20
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Standard format |
| Product or component type | Limit switch body |
| Device short name | ZC2J |
| Body type | Fixed |
| Product compatibility | XC2J |
| Body material | Metal |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and composition | 2 C/O |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
|---|---|
| Positive opening | Without |
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n°1 | (11-12)NC (13-14)NO |
Environment
| IP degree of protection | IP65 |
|---|---|
| IK degree of protection | IK08 |
| Environmental characteristic | Standard environment |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 8.1 CENTIMETER |
| Package 1 width | 4 CENTIMETER |
| Package 1 length | 4.1 CENTIMETER |
| Package 1 weight | 0.35 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 8.1 CENTIMETER |
| Package 2 width | 4 CENTIMETER |
| Package 2 length | 4.1 CENTIMETER |
| Package 2 weight | 0.35 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZC2JC4H2 |
| Order Unit | Pce |
