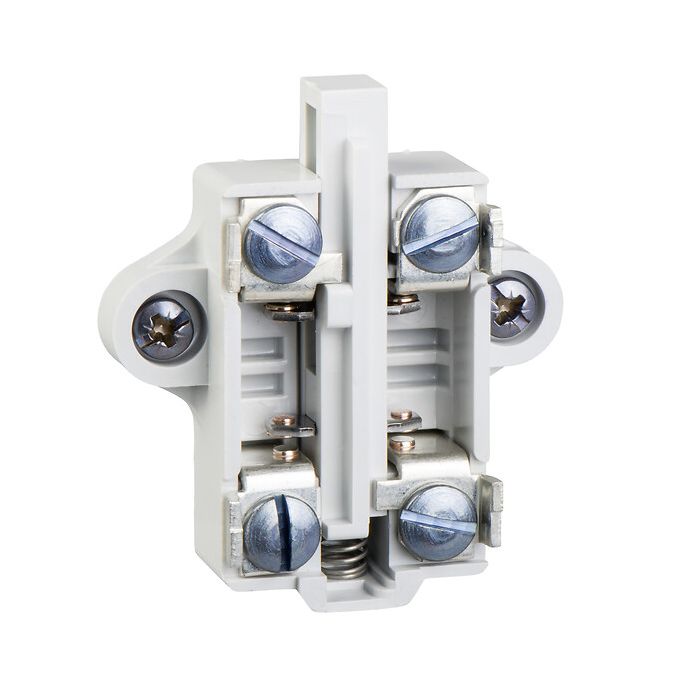

TELEMECANIQUE SENSORS - ZC1AZ13 - Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, make before brake
Lei 280.00
Lei 231.40
In stock
SKU
ZC1AZ13
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch contact block, Limit switches XC Standard, 1NC+1 NO, make before brake
Main
| Range of product | OsiSense XC |
|---|---|
| Series name | Special format |
| Product or component type | Limit switch contact block |
| Device short name | ZC1A |
| Product compatibility | XC1AC13 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break, make before break |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
Complementary
| Contacts insulation form | Za |
|---|---|
| Resistance across terminals | 8 mOhm conforming to IEC 60255-7 category 3 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 2.3 CENTIMETER |
| Package 1 width | 10.1 CENTIMETER |
| Package 1 length | 8.5 CENTIMETER |
| Unit type of package 2 | S02 |
| Package 1 weight | 0.05 KILOGRAM |
| Number of units in package 2 | 50 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.838 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | ZC1AZ13 |
| Order Unit | Pce |
