TELEMECANIQUE SENSORS - XZCR1511064D5 - Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PUR 5 m
Lei 232.00
Lei 191.74
In stock
SKU
XZCR1511064D5
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

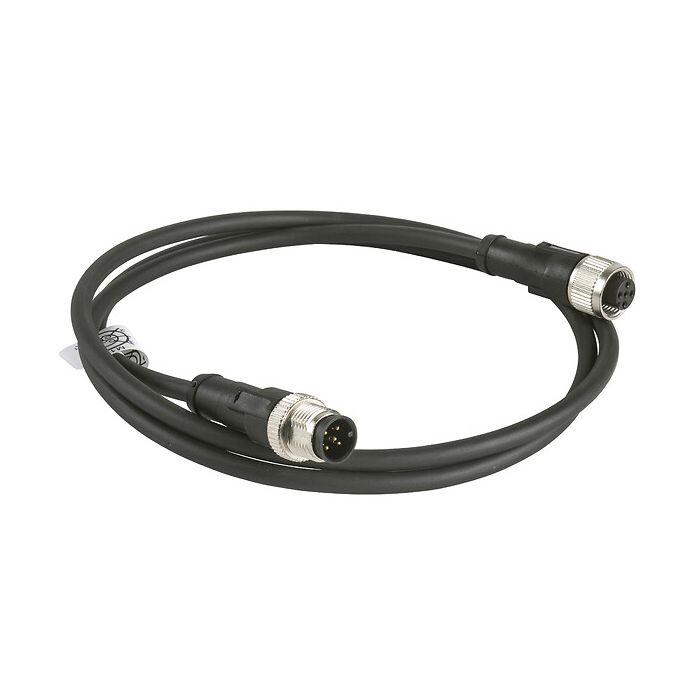

Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PUR 5 m
Main
| Accessory / separate part category | Cabling accessory |
|---|---|
| Accessory / separate part type | Jumper cable |
Complementary
| Jumper cable end 1 | M12 male 5 pins straight connector with screw-on |
|---|---|
| Jumper cable end 2 | M12 female 5 pins straight connector with screw-on |
| Cable composition | 4 x 0.34 mm² + 1 x 0.5 mm² |
| Wire insulation material | PUR |
| [Ue] rated operational voltage | 30 V AC, 36 V DC |
| Insulation resistance | 1000 MOhm |
| Resistance across terminals | 5000 MILLIOHM |
Environment
| IP degree of protection | IP65 IP67 IP69K |
|---|---|
| Product certifications | cULus |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4 CENTIMETER |
| Package 1 width | 22 CENTIMETER |
| Package 1 length | 25 CENTIMETER |
| Package 1 weight | 0.2 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 10 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.328 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XZCR1511064D5 |
| Order Unit | Pce |
