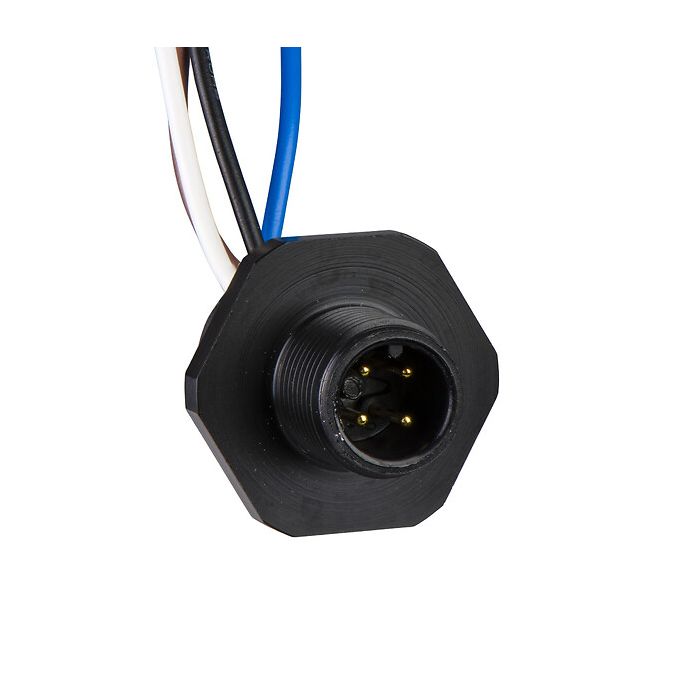

TELEMECANIQUE SENSORS - XZCE03M125M - Adaptor, metal, tapped hole M20, for male connector, M12, 5 wire
Lei 185.00
Lei 152.89
In stock
SKU
XZCE03M125M
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Adaptor, metal, tapped hole M20, for male connector, M12, 5 wire
Main
| Accessory / separate part designation | 5-wire connector adaptor |
|---|---|
| Accessory / separate part category | Cabling accessories |
| Accessory / separate part type | Connector adaptor |
| Cable composition | 4 x 0.34 mm² + 1 x 0.5 mm² |
Complementary
| Electrical connection | - |
|---|---|
| Insulation resistance | > 1000000000 Ohm |
| Resistance across terminals | 5000 MILLIOHM |
| [Ue] rated operational voltage | 30 V AC, 36 V DC |
Environment
| IP degree of protection | IP67 |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 2.5 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 length | 12 CENTIMETER |
| Package 1 weight | 0.026 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 50 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.634 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XZCE03M125M |
| Order Unit | Pce |
