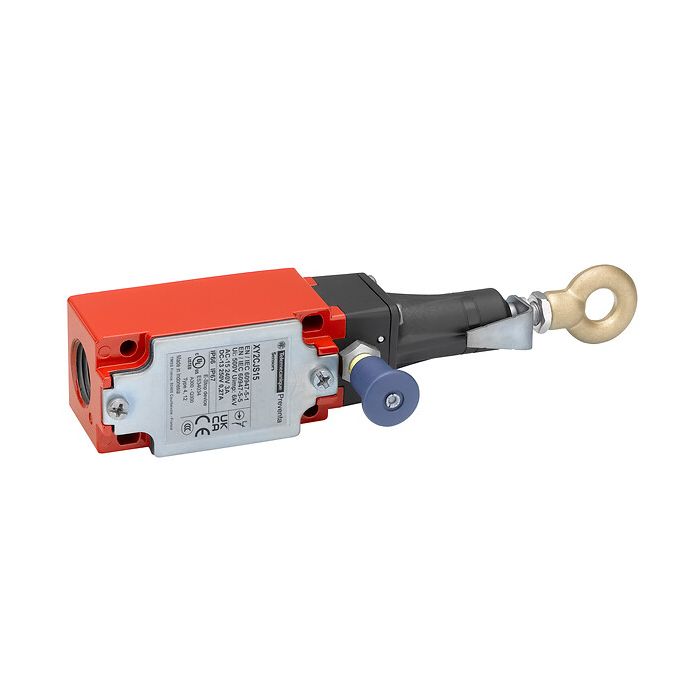

TELEMECANIQUE SENSORS - XY2CJS19 - Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5
Lei 381.00
Lei 314.88
In stock
SKU
XY2CJS19
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Latching emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CJ, straight, 2NC+1 NO, Pg13.5
Main
| Range of product | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Product or component type | Latching emergency stop rope pull switch |
| Device short name | XY2C |
| Housing colour | Red RAL 3000 |
| Overvoltage category | Class I conforming to IEC 61140 |
Complementary
| Local signalling | Color indicator |
|---|---|
| Body material | Zamak |
| Head material | PA (polyamide) |
| Cover material | Galvanised steel |
| Reset | By pull button |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break |
| Trigger cable anchor point | RH or LH side |
| Connections - terminals | Screw clamp terminal, 1 x 0.34...1 x 1 mm², screw clamp terminal, 1 x 0.34...2 x 0.75 mm² |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data | B10d = 500000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking | CE |
| Positive opening | With conforming to IEC 60947-5-1 |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Terminals description ISO n°1 | (13-14)NO (21-22)NC (31-32)NC |
| Compatibility code | XY2CJ |
Environment
| Standards | CSA C22.2 No 14 IEC 60204-1 IEC 60947-5-1 IEC 60947-5-5 ISO 13850 machinery directive 2006/42/EC UL 508 work equipment directive 2009/104/EC |
|---|---|
| Product certifications | UL category NISD emergency stop devices, CSA, CCC, EAC |
| Protective treatment | TC |
| Vibration resistance | 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5.7 CENTIMETER |
| Package 1 width | 23 CENTIMETER |
| Package 1 length | 7.5 CENTIMETER |
| Package 1 weight | 0.511 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 10 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 30 CENTIMETER |
| Package 2 weight | 62.6 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 24.6 CENTIMETER |
| Package 3 width | 5.6 CENTIMETER |
| Package 3 length | 7.3 CENTIMETER |
| Package 3 weight | 0.515 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XY2CJS19 |
| Order Unit | Pce |
