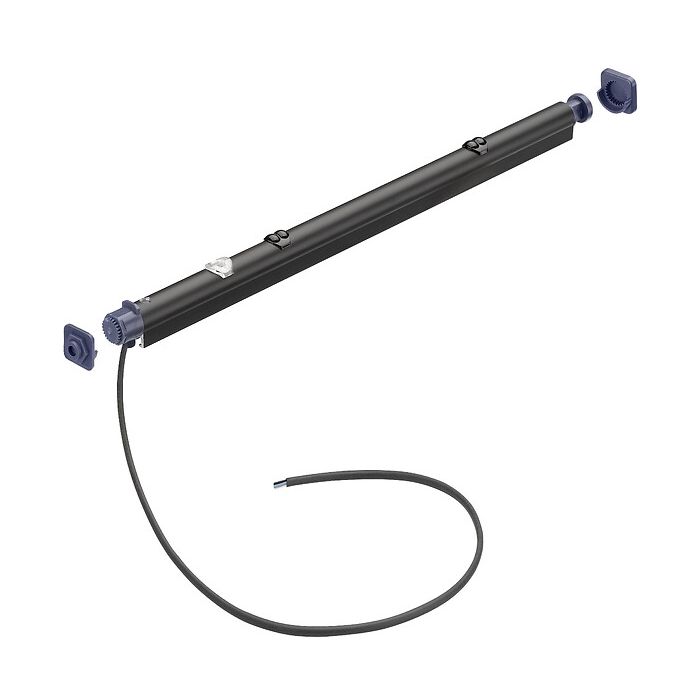

TELEMECANIQUE SENSORS - XUY914AE5P03M12 - Photoelectric XU Roller Sensor 914mm 5 lens Space 186,2mm IP50, Cable 0,3 m M12
Lei 1,478.00
Lei 1,221.49
In stock
SKU
XUY914AE5P03M12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric XU Roller Sensor 914mm 5 lens Space 186,2mm IP50, Cable 0,3 m M12
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application, conveyor system and access control |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUY |
| Sensor design | Roller sensor |
| Detection system | Diffuse |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO |
| Electrical connection | 1 remote connector M12, 4 pins |
| Product specific application | Conveyor system |
Complementary
| Enclosure material | Aluminium |
|---|---|
| Lens material | Polycarbonate |
| Cover material | PVC |
| Output type | Solid state |
| Voltage drop | <2 V at 100 mA |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Current consumption | < 35 mA no-load |
| Delay response | 1 ms |
| Supply voltage limits | 18-30 V DC |
Environment
| IP degree of protection | IP50 conforming to IEC 60529 |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 6 CENTIMETER |
| Package 1 width | 6 CENTIMETER |
| Package 1 length | 100 CENTIMETER |
| Package 1 weight | 0.25 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUY914AE5P03M12 |
| Order Unit | Pce |
