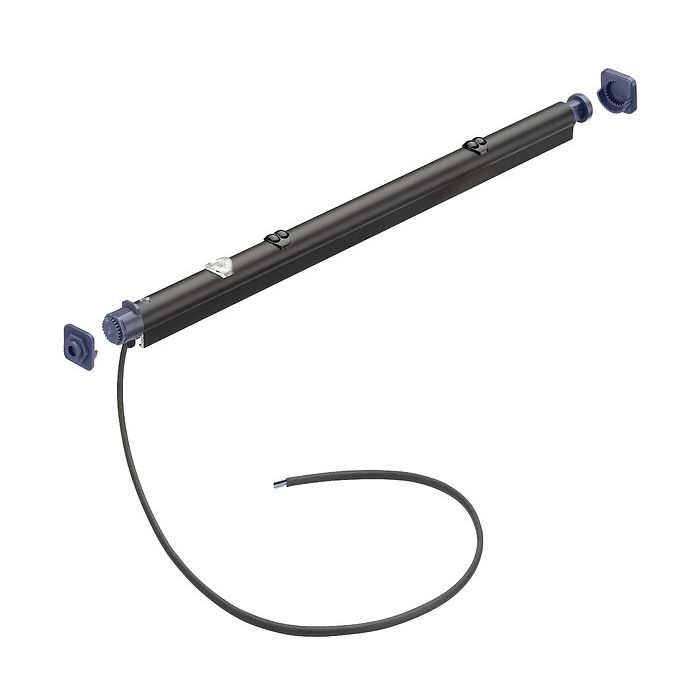

TELEMECANIQUE SENSORS - XUY609NB6H03M12 - Photoelectric XU Roller Sensor 609mm 6 lens Space 93,1mm, IP50, Cable 0,3 m, M12
Lei 796.00
Lei 657.85
In stock
SKU
XUY609NB6H03M12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric XU Roller Sensor 609mm 6 lens Space 93,1mm, IP50, Cable 0,3 m, M12
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUY |
| Sensor design | Roller sensor |
| Detection system | Diffuse |
| Sensing range | > 0...0.1 m |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | PNP or NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 remote male connector M12, 3 pins |
| Product specific application | Conveyor system |
| Emission | - |
Complementary
| Enclosure material | Aluminium |
|---|---|
| Lens material | Polycarbonate |
| Cover material | PVC |
| Output type | Solid state |
| [Us] rated supply voltage | - |
| Status LED | - |
| Voltage drop | <2 V at 100 mA (closed state) |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Current consumption | < 35 mA no-load |
| Delay response | 1 ms |
| Supply voltage limits | 18-30 V DC |
Environment
| IP degree of protection | IP50 conforming to IEC 60529 |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 63 CENTIMETER |
| Package 1 weight | 0.8 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 9 CENTIMETER |
| Package 2 width | 9 CENTIMETER |
| Package 2 length | 63 CENTIMETER |
| Package 2 weight | 0.8 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUY609NB6H03M12 |
| Order Unit | Pce |
