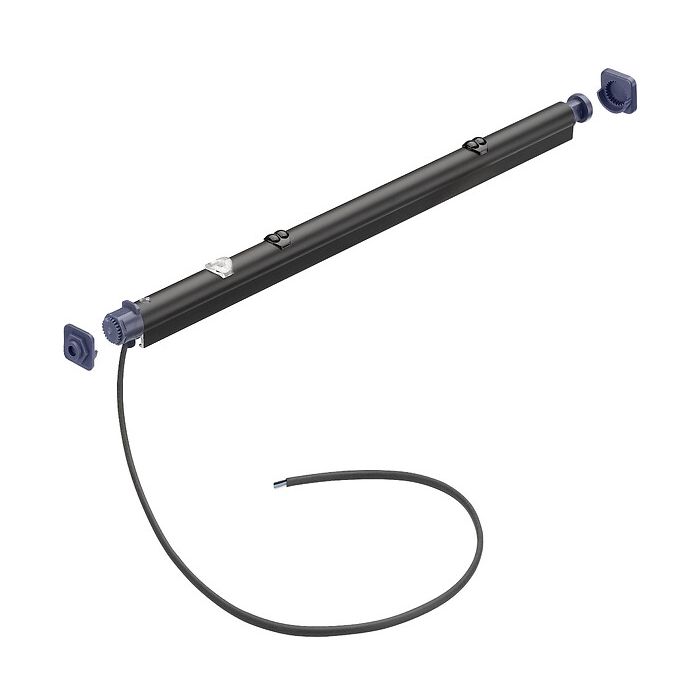

TELEMECANIQUE SENSORS - XUY559NB5P2 - Photoelectric sensors XU, Roller Sensor 559 mm N5, P93.1 IP50 2 Hexa. Cable 2 m,Wires
Lei 676.00
Lei 558.68
In stock
SKU
XUY559NB5P2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, Roller Sensor 559 mm N5, P93.1 IP50 2 Hexa. Cable 2 m,Wires
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUY |
| Sensor design | Roller sensor |
| Detection system | Diffuse |
| Sensing range | > 0...0.1 m |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | PNP or NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | Cable |
| Product specific application | Conveyor system |
| Emission | - |
Complementary
| Enclosure material | Aluminium |
|---|---|
| Lens material | Polycarbonate |
| Cover material | PVC |
| Output type | Solid state |
| [Us] rated supply voltage | - |
| Status LED | - |
| Voltage drop | <2 V at 100 mA (closed state) |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Current consumption | < 35 mA no-load |
| Delay response | 1 ms |
| Supply voltage limits | 18-30 V DC |
Environment
| IP degree of protection | IP50 conforming to IEC 60529 |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 63 CENTIMETER |
| Package 1 weight | 0.9 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 10 |
| Package 2 height | 9 CENTIMETER |
| Package 2 width | 9 CENTIMETER |
| Package 2 length | 63 CENTIMETER |
| Package 2 weight | 9 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUY559NB5P2 |
| Order Unit | Pce |
