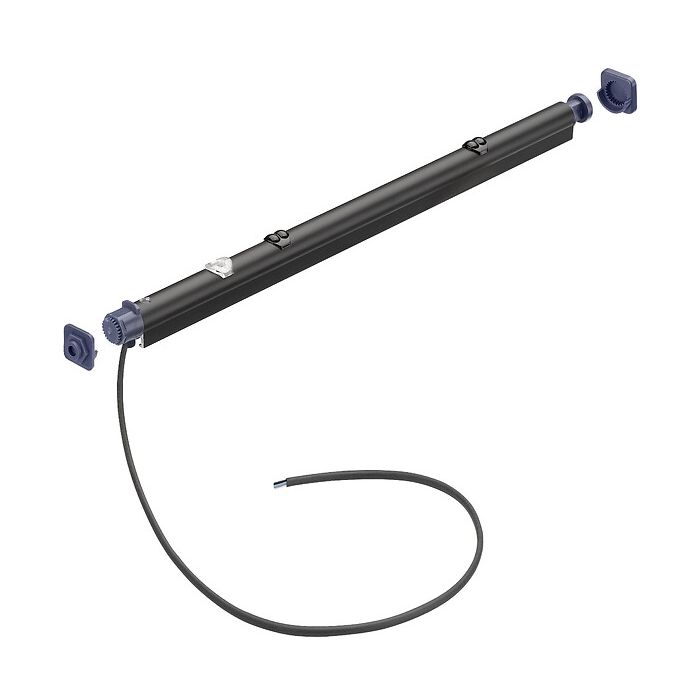

TELEMECANIQUE SENSORS - XUY407AF1P1M8 - ROLLER SENSOR FOR CONVEYOR 407MM N1
Lei 510.00
Lei 421.49
In stock
SKU
XUY407AF1P1M8
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
ROLLER SENSOR FOR CONVEYOR 407MM N1
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application, conveyor system and access control |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUY |
| Sensor design | Roller sensor |
| Detection system | Diffuse |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO |
| Electrical connection | 1 remote connector M8, 4 pins |
| Product specific application | Conveyor system |
Complementary
| Enclosure material | Aluminium |
|---|---|
| Lens material | Polycarbonate |
| Cover material | PVC |
| Output type | Solid state |
| Voltage drop | <2 V at 100 mA |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Current consumption | < 35 mA no-load |
| Delay response | 1 ms |
| Supply voltage limits | 18-30 V DC |
Environment
| IP degree of protection | IP50 conforming to IEC 60529 |
|---|
Packing Units
| Indivisible sale quantity | 5 |
|---|
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUY407AF1P1M8 |
| Order Unit | Pce |
