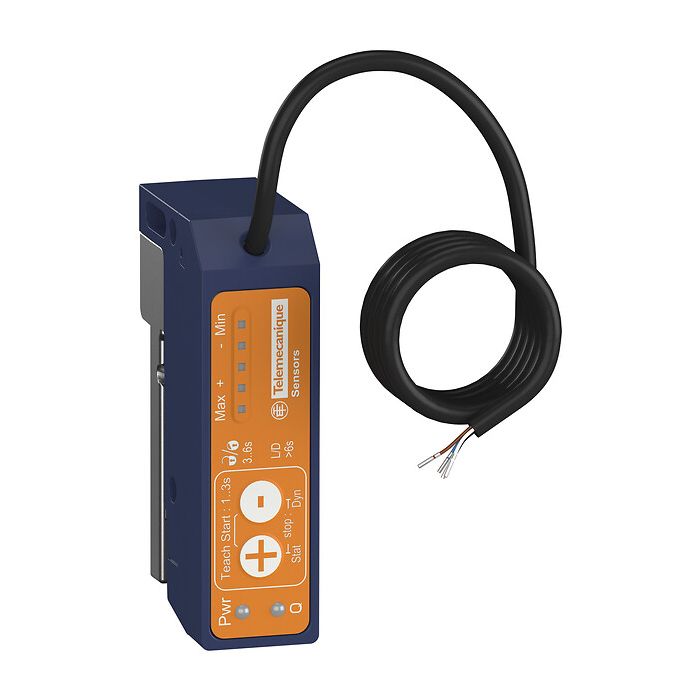

TELEMECANIQUE SENSORS - XUVU04M3NL2 - Ultrasonic label fork Depth 60mm Sn3mm NPN IOLink Cable 2m
Lei 2,598.00
Lei 2,147.11
In stock
SKU
XUVU04M3NL2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Ultrasonic label fork Depth 60mm Sn3mm NPN IOLink Cable 2m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application packaging LABELLING DETECTION |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Fork |
| Detection system | Through beam |
| Emission | Ultrasonic |
| Type of setting | Teach buttons or IO-Link |
| Material | Valox zamak |
| Supply circuit type | DC |
| Wiring technique | 4 wires |
| Discrete output type | NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 connector M8, 4 pins |
| Product specific application | Detection of labels detection of transparent labels detection on a labelling machine |
Complementary
| Enclosure material | Valox zamak |
|---|---|
| Setting-up | Sensitivity by IO-Link sensitivity adjustment with teach mode |
| Accuracy | at 240m/min (for 2 mm label length, 2 mm gap)m/mn |
| Type of output signal | Discrete |
| Label length | 2 MILLIMETER |
| Output type | Discrete |
| Distance between labels | 1 MILLIMETER |
| [Us] rated supply voltage | - |
| Passing speed of object | 4 METER_PER_SECOND |
| Status LED | - |
| Current consumption | 0.05 mA |
| Switching capacity in mA | <= 100 mA |
| Delay first up | 300 MILLISECOND |
| Delay response | 0.44 MILLISECOND |
Environment
| IP degree of protection | IP65 conforming to EN/IEC 60529 |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 11.2 CENTIMETER |
| Package 1 weight | 0.12 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 16 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.92 KILOGRAM |
| Indivisible sale quantity | 1 |
