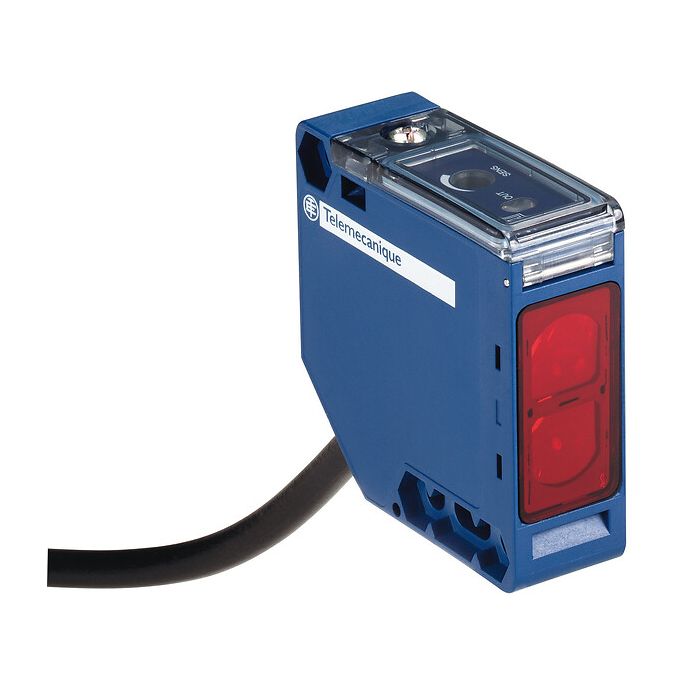

TELEMECANIQUE SENSORS - XUK2ARCNL2R - Photoelectric sensors XU, XUK, receiver, Sn 30 m, 24...240VAC/DC, cable 2 m
Lei 366.00
Lei 302.48
In stock
SKU
XUK2ARCNL2R
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XUK, receiver, Sn 30 m, 24...240VAC/DC, cable 2 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor receiver |
| Sensor name | XUK |
| Sensor design | Compact 50 x 50 |
| Detection system | Thru beam |
| Sensing range | > 15...30 m |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring technique | 5-wire |
| [Sn] nominal sensing distance | 30-30 m thru beam need a transmitter XUK2ARCNL2T |
| Discrete output function | 1 NC + 1 NO |
| Electrical connection | Cable |
| Product specific application | Not applicable |
| Emission | Infrared thru beam |
Complementary
| Enclosure material | PBT |
|---|---|
| Lens material | PMMA |
| Output type | Relay |
| Add on output | Without |
| Status LED | 1 LED (yellow) for output state |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Switching capacity in mA | 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| Switching frequency | 20 Hz |
| Maximum voltage drop | <1.5 V (closed state) |
| Maximum power consumption in W | - |
| Delay first up | 60 MILLISECOND |
| Delay response | 25 MILLISECOND |
| Delay recovery | 25 MILLISECOND |
| Setting-up | Without sensitivity adjustment |
| Supply voltage limits | 20-264 V AC/DC |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP65 double insulation conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4.008 CENTIMETER |
| Package 1 width | 9.792 CENTIMETER |
| Package 1 length | 12.972 CENTIMETER |
| Package 1 weight | 0.181 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 22 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.6333 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 4.2 CENTIMETER |
| Package 3 width | 9.7 CENTIMETER |
| Package 3 length | 13.3 CENTIMETER |
| Package 3 weight | 0.184 KILOGRAM |
| Indivisible sale quantity | 1 |
