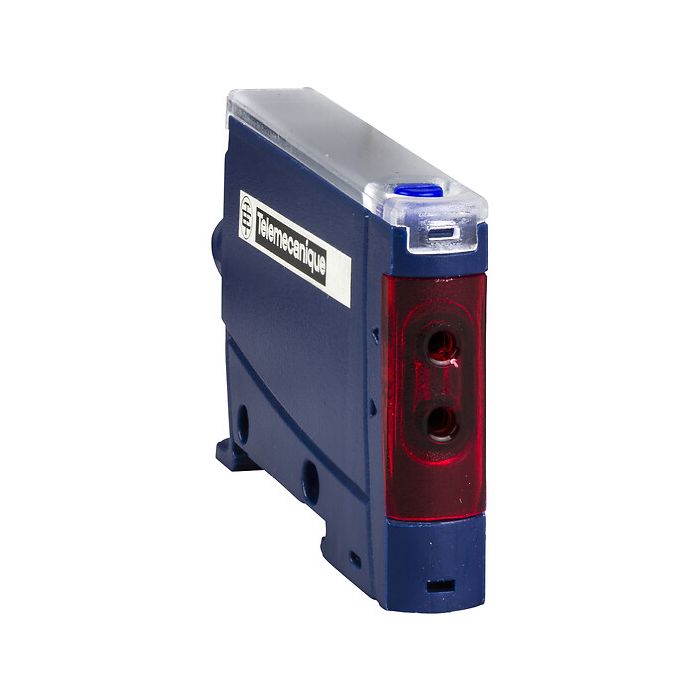

TELEMECANIQUE SENSORS - XUDA2NSML2 - Photoelectric sensors XU, fiber optic amplifier, NO/NC programmable, cable 2 m
Lei 1,004.00
Lei 829.75
In stock
SKU
XUDA2NSML2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, fiber optic amplifier, NO/NC programmable, cable 2 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application assembly |
| Specific application of photoelectric detector | Object |
| Sensor name | XUD |
Complementary
| Sensor design | Fiber design |
|---|---|
| Electronic sensor type | Photo-electric sensor |
| Wiring technique | 3-wire |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Output type | Solid state |
| Discrete output function | 1 NO or 1 NC programmable |
| Discrete output type | NPN |
| Electrical connection | - |
| Supply circuit type | DC |
| Cable material | PVC |
| Status LED | - |
| [Us] rated supply voltage | - |
| Switching capacity in mA | - |
| Voltage drop | - |
| Current consumption | <= 50 mA no-load |
| Add on output | With alarm output, 50 mA with overload protection, with alarm output, 50 mA with short-circuit protection |
| Delay first up | 120 MILLISECOND |
| Delay response | 0.1 MILLISECOND |
| Setting-up | Sensitivity adjustment with teach mode |
| Display type | 4-digit |
| Lens material | PMMA |
Environment
| Interference protection | With |
|---|---|
| IP degree of protection | - |
| Vibration resistance | +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, 7 gn (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 8 CENTIMETER |
| Package 1 length | 8 CENTIMETER |
| Package 1 weight | 0.084 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 45 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 4.235 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUDA2NSML2 |
| Order Unit | Pce |
