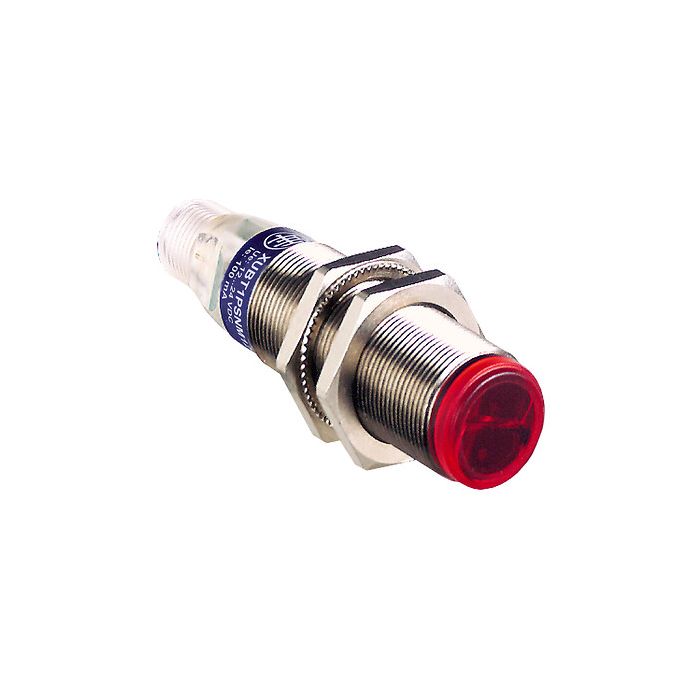

TELEMECANIQUE SENSORS - XUBTSPSNM12 - Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12
Lei 1,048.00
Lei 866.12
In stock
SKU
XUBTSPSNM12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XUBT, polarised, Sn 1.4 m, 12...24 VDC, M12
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Sensor name | XUBT |
| Series name | Application packaging |
| Product specific application | Detection of transparent object |
| Enclosure material | Stainless steel : 304 CU |
| Electronic sensor type | Photo-electric sensor |
| Sensor design | Cylindrical M18 |
| Electrical connection | 1 male connector M12, 4 pins |
| Material | Metal |
| Wiring technique | 3-wire |
| Detection system | Reflex |
| Emission | Coaxial polarised red reflex |
| Kit composition | Reflector XUZC50HP sensor |
| Discrete output function | 1 NO or 1 NC programmable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Discrete output type | PNP |
| Delay response | 500 MILLISECOND |
Complementary
| Current consumption | 45 mA no-load |
|---|---|
| Status LED | - |
| Output type | Solid state |
| Switching capacity in mA | 100 mA (overload and short-circuit protection) |
| Lens material | PMMA |
| Spot diameter | 37 mm |
| Sensing range | > 1...5 m |
| Voltage drop | <1.5 V (closed state) |
| Delay first up | 200 MILLISECOND |
| Delay recovery | 500 MILLISECOND |
Environment
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 (double insulation), IP67 conforming to IEC 60529 (double insulation), IP69K conforming to DIN 40050 (double insulation) |
| Vibration resistance | 7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.6 CENTIMETER |
| Package 1 width | 7.2 CENTIMETER |
| Package 1 length | 12.8 CENTIMETER |
| Package 1 weight | 0.074 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 35 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.378 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUBTSPSNM12 |
| Order Unit | Pce |
