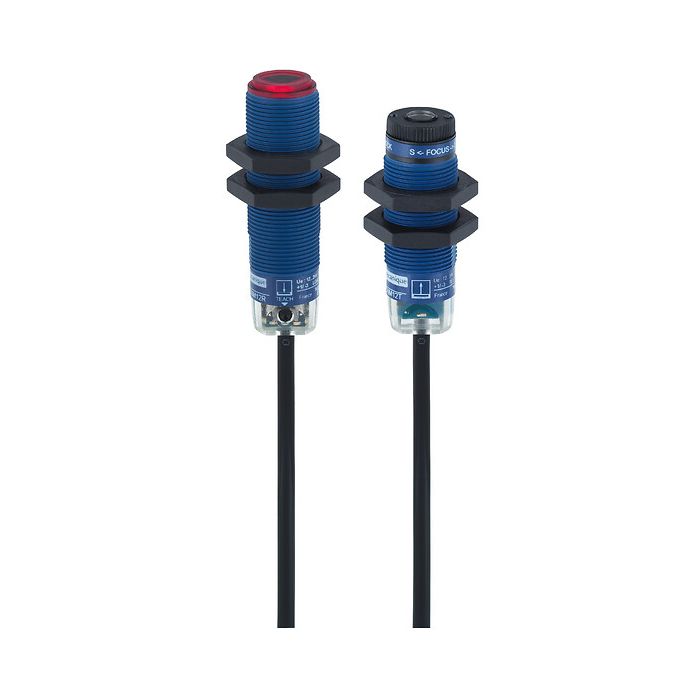

TELEMECANIQUE SENSORS - XUBLANCNL2 - Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, cable 2 m
Lei 2,839.00
Lei 2,346.28
In stock
SKU
XUBLANCNL2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, cable 2 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application material handling |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUB |
| Sensor design | Cylindrical M18 |
| Detection system | Thru beam |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Discrete output type | NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | Cable |
| Emission | Red laser class 1 670 nm conforming to IEC 825-1 |
Complementary
| Enclosure material | PBT |
|---|---|
| Lens material | PMMA |
| Output type | Solid state |
| Status LED | - |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Voltage drop | <1.5 V (closed state) |
| Current consumption | 25 mA no-load |
| Maximum power consumption in W | - |
| Delay first up | 80 MILLISECOND |
| Delay response | 0.4 MILLISECOND |
| Setting-up | With sensitivity adjustment |
| Delay recovery | 0.4 MILLISECOND |
| Kit composition | Transmitter + receiver XUBLAKCNL2T + XUBLANCNL2R |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 (double insulation) |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.6 CENTIMETER |
| Package 1 width | 7 CENTIMETER |
| Package 1 length | 13 CENTIMETER |
| Package 1 weight | 0.18 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 15 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.925 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUBLANCNL2 |
| Order Unit | Pce |
