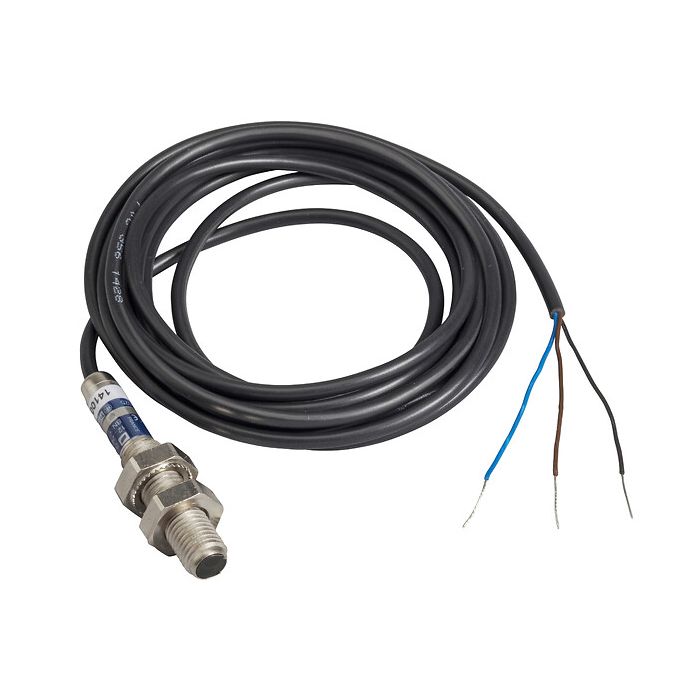

TELEMECANIQUE SENSORS - XUAJ0515 - Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, cable 2 m
Lei 819.00
Lei 676.86
In stock
SKU
XUAJ0515
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XUA, diffuse, Sn 0.05 m, 12...24 VDC, cable 2 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application assembly |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUA |
| Sensor design | Cylindrical M8 |
| Detection system | Diffuse |
| Sensing range | > 0...0.3 m |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 0.05 m diffuse |
| Discrete output type | NPN |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Product specific application | Not applicable |
| Emission | Infrared diffuse |
Complementary
| Enclosure material | Nickel plated brass |
|---|---|
| Lens material | PC |
| Output type | Solid state |
| Add on output | Without |
| Cable composition | 3 x 0.14 mm² |
| Status LED | 1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Maximum voltage drop | <1 V (closed state) |
| Current consumption | <= 25 mA no-load |
| Delay first up | 20 MILLISECOND |
| Delay response | 0.5 MILLISECOND |
| Delay recovery | 0.5 MILLISECOND |
| Setting-up | Without sensitivity adjustment |
| Supply voltage limits | 10-30 V DC |
| Ambient air temperature for operation | -25-55 °C |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 4 CENTIMETER |
| Package 1 width | 14 CENTIMETER |
| Package 1 length | 15 CENTIMETER |
| Package 1 weight | 0.093 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 10 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 0.93 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 30 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 40 CENTIMETER |
| Package 3 length | 30 CENTIMETER |
| Package 3 weight | 2.94 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XUAJ0515 |
| Order Unit | Pce |
