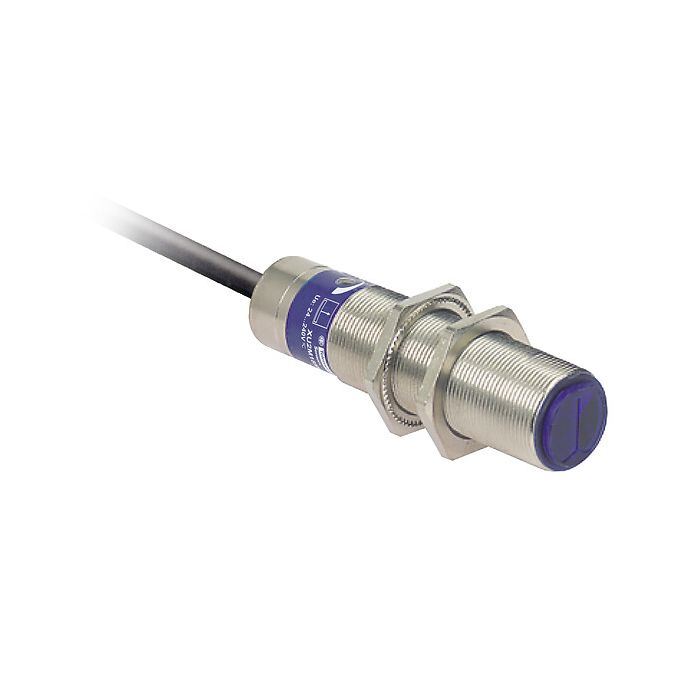

TELEMECANIQUE SENSORS - XU8M18MB230 - Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24...240VAC/DC, cable 2 m
Lei 591.00
Lei 488.43
In stock
SKU
XU8M18MB230
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24...240VAC/DC, cable 2 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XU8 |
| Sensor design | Cylindrical M18 |
| Detection system | Diffuse with background suppression |
| Sensing range | > 0...0.3 m |
| Material | Metal |
| Type of output signal | Discrete |
| Supply circuit type | AC/DC |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 0.12-0.12 m diffuse with background suppression |
| Discrete output function | 1 NC |
| Electrical connection | Cable |
| Product specific application | Not applicable |
| Emission | Infrared diffuse with background suppression |
Complementary
| Enclosure material | Nickel plated brass |
|---|---|
| Lens material | PMMA |
| Output type | Solid state |
| Add on output | Without |
| Status LED | 1 LED (yellow) for output state |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Residual current | - |
| Switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| Maximum voltage drop | <6 V (closed state) |
| Delay first up | 300 MILLISECOND |
| Delay response | 20 MILLISECOND |
| Delay recovery | 20 MILLISECOND |
| Setting-up | Sensitivity adjustment |
| Supply voltage limits | 20-264 V AC/DC |
| Ambient air temperature for operation | -25-55 °C |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 13.2 CENTIMETER |
| Package 1 width | 9.4 CENTIMETER |
| Package 1 length | 4.4 CENTIMETER |
| Package 1 weight | 0.134 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 11 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.693 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 22 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XU8M18MB230 |
| Order Unit | Pce |
