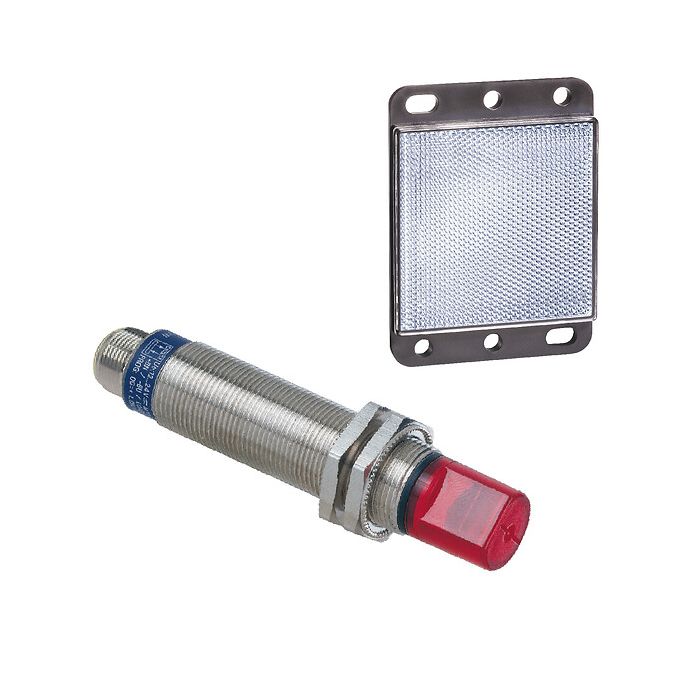

TELEMECANIQUE SENSORS - XU2N18PP9AAS27 - Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18
Lei 736.00
Lei 608.26
In stock
SKU
XU2N18PP9AAS27
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XU2, thru beam, 12...24 VDC, M18
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XU2 |
| Sensor design | Cylindrical M18 |
| Electrical connection | 1 male connector M18 |
| Emission | Infrared thru beam |
Complementary
| Enclosure material | Stainless steel : 304 CU |
|---|---|
| Lens material | PMMA |
| Output type | Solid state |
| Add on output | Without |
| Status LED | 1 LED (green) for supply on, 1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Maximum voltage drop | <1.5 V (closed state) |
| Delay first up | 15 MILLISECOND |
| Delay response | 1 MILLISECOND |
| Delay recovery | 1 MILLISECOND |
| Setting-up | Without sensitivity adjustment |
| Supply voltage limits | 10-30 V DC |
| Ambient air temperature for operation | -25-55 °C |
Environment
| Vibration resistance | 25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 14.8 CENTIMETER |
| Package 1 width | 8.1 CENTIMETER |
| Package 1 length | 8.1 CENTIMETER |
| Package 1 weight | 0.24 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 18 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 8.1 CENTIMETER |
| Package 3 width | 14.8 CENTIMETER |
| Package 3 length | 8.1 CENTIMETER |
| Package 3 weight | 0.24 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XU2N18PP9AAS27 |
| Order Unit | Pce |
