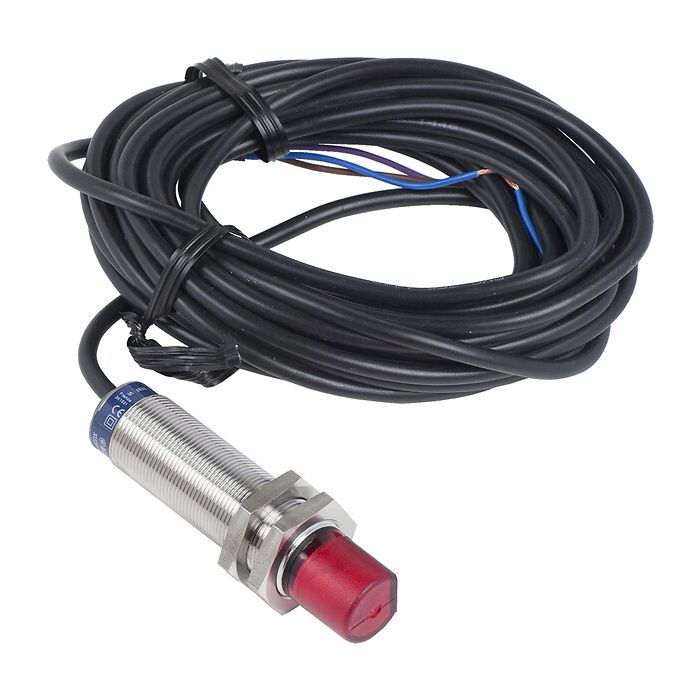

TELEMECANIQUE SENSORS - XU2N18KP9AAL5T - Photoelectric sensors XU, XU2, transmitteur, cylindrical M18, 15 m
Lei 776.00
Lei 641.32
In stock
SKU
XU2N18KP9AAL5T
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XU2, transmitteur, cylindrical M18, 15 m
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | Application food and beverage |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XU2 |
| Sensor design | Cylindrical M18 |
| Detection system | Thru beam |
| Sensing range | 15 m |
| Material | Stainless steel |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 15-15 m thru beam |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | Cable |
| Emission | Infrared thru beam |
Complementary
| Enclosure material | Stainless steel : 304 CU |
|---|---|
| Lens material | PMMA |
| Output type | Solid state |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Maximum voltage drop | <1.5 V (closed state) |
| Current consumption | <= 50 mA no-load |
| Delay first up | 15 MILLISECOND |
| Delay response | 1 MILLISECOND |
| Delay recovery | 1 MILLISECOND |
| Setting-up | Sensitivity adjustment |
| Supply voltage limits | 10-30 V DC |
| Ambient air temperature for operation | -25-55 °C |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 14.8 CENTIMETER |
| Package 1 width | 8.1 CENTIMETER |
| Package 1 length | 8.1 CENTIMETER |
| Package 1 weight | 0.24 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 22 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 240 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 8.1 CENTIMETER |
| Package 3 width | 14.8 CENTIMETER |
| Package 3 length | 8.1 CENTIMETER |
| Package 3 weight | 0.24 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XU2N18KP9AAL5T |
| Order Unit | Pce |
