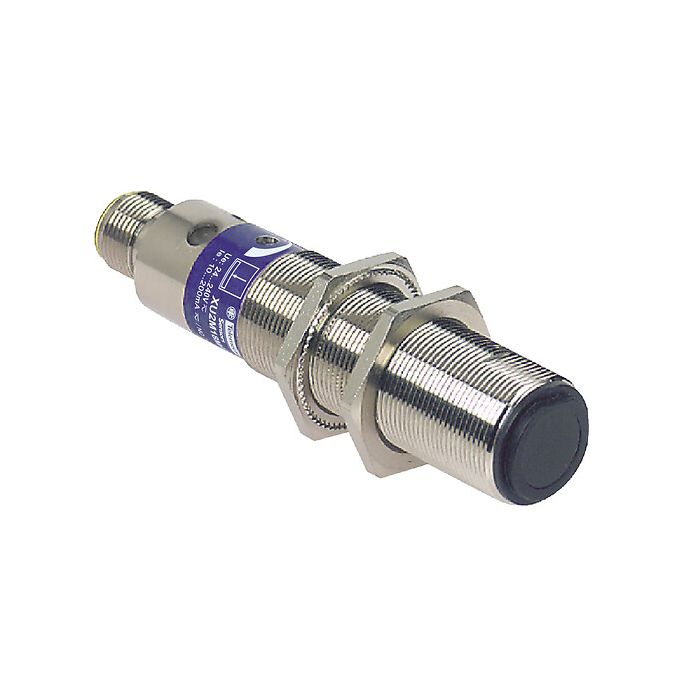

TELEMECANIQUE SENSORS - XU2M18MC230KT - Photoelectric sensors XU, XU2, emitter, 24...240VAC/DC, 1/2"
Lei 443.00
Lei 366.12
In stock
SKU
XU2M18MC230KT
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Photoelectric sensors XU, XU2, emitter, 24...240VAC/DC, 1/2"
Main
| Range of product | Telemecanique Photoelectric sensors XU |
|---|---|
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XU2 |
| Sensor design | Cylindrical M18 |
| Detection system | Thru beam |
| Material | Metal |
| Supply circuit type | AC/DC |
| Wiring technique | 2-wire |
| Electrical connection | 1 male connector 1/2"20 UNF, 3 pins |
| Emission | - |
Complementary
| Enclosure material | Nickel plated brass |
|---|---|
| Lens material | PMMA |
| Add on output | Without |
| [Us] rated supply voltage | 24...240 V AC/DC |
| Switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) |
| Delay first up | 300 MILLISECOND |
| Setting-up | Without sensitivity adjustment |
Environment
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
|---|---|
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5.5 CENTIMETER |
| Package 1 width | 10.5 CENTIMETER |
| Package 1 length | 8.5 CENTIMETER |
| Package 1 weight | 0.2 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XU2M18MC230KT |
| Order Unit | Pce |
