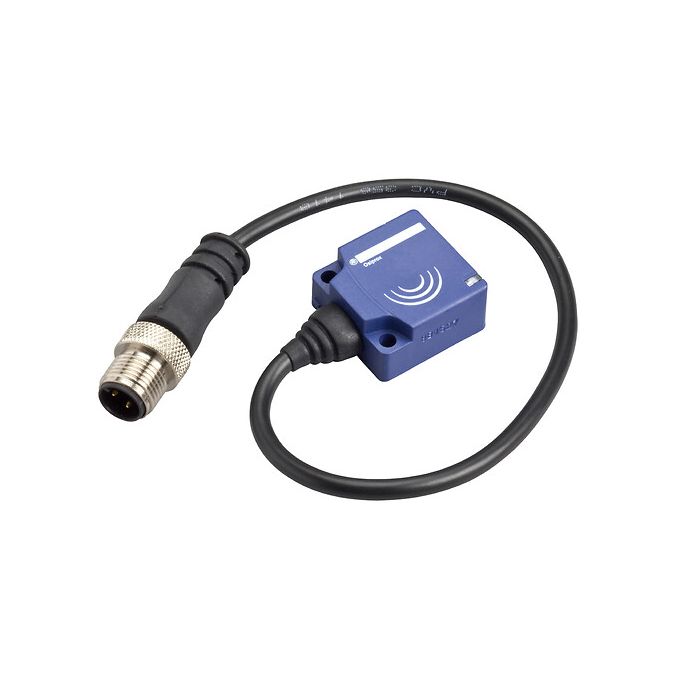

TELEMECANIQUE SENSORS - XS9E111A1L01M12 - Inductive proximity sensors XS, inductive sensor XS9 26x26x13, PBT, Sn10mm, 24 VDC, M12 0.15 m
Lei 900.00
Lei 743.80
In stock
SKU
XS9E111A1L01M12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Inductive proximity sensors XS, inductive sensor XS9 26x26x13, PBT, Sn10mm, 24 VDC, M12 0.15 m
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS9 |
| Sensor design | Flat form 26 x 26 x 13 |
| Size | 13 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Electrical connection | Remote male connector M12, 4 pins |
| Analogue output range | 0...10 V |
| [Us] rated supply voltage | 24 V DC |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
Complementary
| Detector flush mounting acceptance | Flush mountable |
|---|---|
| Material | Plastic |
| Output circuit type | DC |
| Detection face | Frontal |
| Front material | PBT |
| Repeat accuracy | <= 3% of Sr |
| Linearity error | +/- 1 V |
| Sensing range | 8...15 mm |
| Status LED | Without |
| Switching frequency | <= 1000 Hz |
| Output current drift | 10 PERCENTAGE |
| Current consumption | 0...4 mA no-load |
| Marking | CE |
Environment
| Product certifications | CSA Ecolab UL |
|---|---|
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.4 CENTIMETER |
| Package 1 width | 6.6 CENTIMETER |
| Package 1 weight | 0.047 KILOGRAM |
| Package 1 length | 8.8 CENTIMETER |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 22 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.21 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS9E111A1L01M12 |
| Order Unit | Pce |
