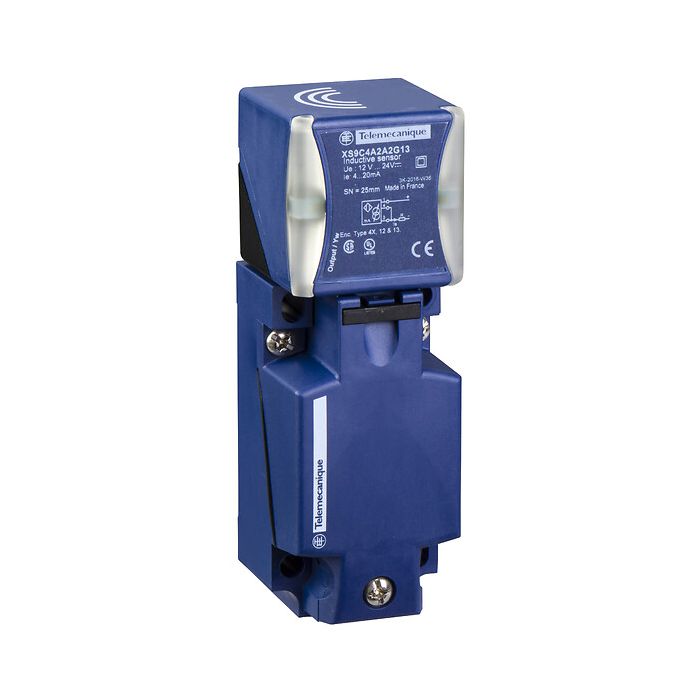

TELEMECANIQUE SENSORS - XS9C4A2A2G13 - Inductive proximity sensors XS, inductive sensor XS9 40x40x117, PBT, Sn25 mm, 12...24 VDC, terminals
Lei 617.00
Lei 509.92
In stock
SKU
XS9C4A2A2G13
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Inductive proximity sensors XS, inductive sensor XS9 40x40x117, PBT, Sn25 mm, 12...24 VDC, terminals
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Not applicable |
| Sensor name | XS9 |
| Sensor design | Form 40 x 40 x 117 |
| Size | 117 mm |
| Body type | Fixed |
| Enclosure material | PBT |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| Analogue output range | 4...20 mA |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529, IP65 conforming to IEC 60529, IP69K conforming to DIN 40050 |
Complementary
| Detector flush mounting acceptance | Non flush mountable |
|---|---|
| Material | Plastic |
| Output circuit type | DC |
| Detection face | 5 positions turret head |
| Front material | PBT |
| Linearity error | <= 3% of Sr |
| Sensing range | > 15...40 mm |
| Status LED | Output state: 1 LED (yellow) |
| Output current drift | 5 PERCENTAGE |
| Current consumption | 0...4 mA no-load |
| Delay first up | 7.5 MILLISECOND |
| Marking | CE |
| Delay response | 6 MILLISECOND |
| Delay recovery | 6 MILLISECOND |
Environment
| Product certifications | CSA UL |
|---|---|
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 weight | 0.251 KILOGRAM |
| Package 1 length | 14.5 CENTIMETER |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 14 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.863 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 5 CENTIMETER |
| Package 3 width | 5 CENTIMETER |
| Package 3 length | 14.5 CENTIMETER |
| Package 3 weight | 0.252 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS9C4A2A2G13 |
| Order Unit | Pce |
