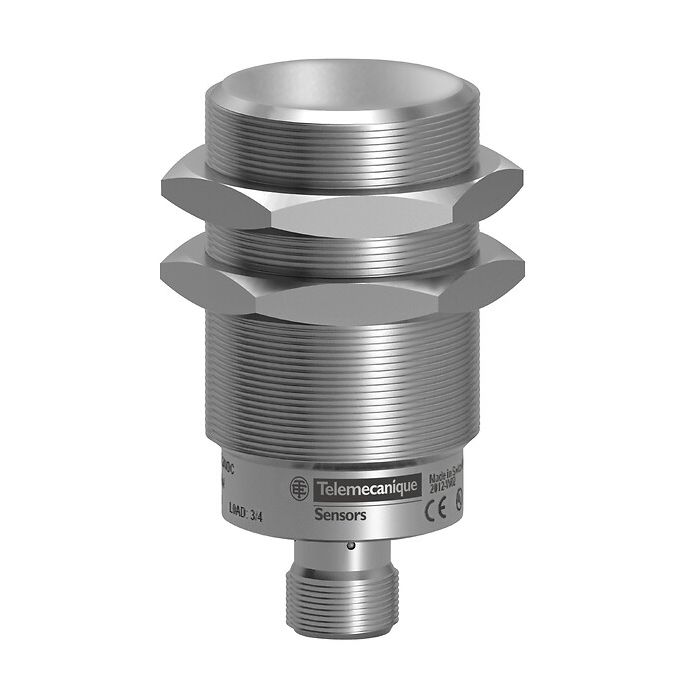

TELEMECANIQUE SENSORS - XS930S1PAM12 - Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn20 mm, 12...24 VDC, M12
Lei 898.00
Lei 742.15
In stock
SKU
XS930S1PAM12
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 316L, Sn20 mm, 12...24 VDC, M12
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS9 |
| Device application | Food and beverage |
| Sensor design | Cylindrical M30 |
| Size | 64 mm |
| Body type | Single piece body |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Flush mountable |
| Discrete output type | PNP |
| Material | Stainless steel 316L |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP69K conforming to DIN 40050, IP68 conforming to IEC 60529 |
Complementary
| Enclosure material | Stainless steel 316L |
|---|---|
| Detection face | Frontal |
| Thread type | M30 x 1.5 |
| Front material | Stainless steel 316L |
| Sensing range | > 15...40 mm |
| Differential travel | 1...15 % of Sr |
| Repeat accuracy | <= 5 % of Sr |
| Residual current | 0.1 mA open state |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 100 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 40 MILLISECOND |
| Delay response | 0.0001 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.015 MILLISECOND |
Environment
| Product certifications | cULus Ecolab |
|---|---|
| Vibration resistance | 25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 9 CENTIMETER |
| Package 1 length | 15 CENTIMETER |
| Package 1 weight | 0.147 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 25 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 3.862 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 13 CENTIMETER |
| Package 3 width | 6.5 CENTIMETER |
| Package 3 length | 7.5 CENTIMETER |
| Package 3 weight | 0.184 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS930S1PAM12 |
| Order Unit | Pce |
