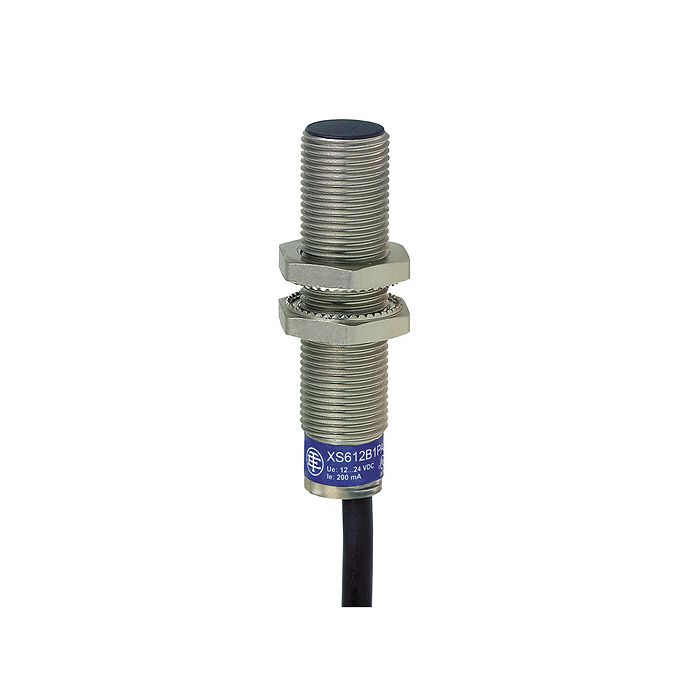

TELEMECANIQUE SENSORS - XS1M12AB120L1 - Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12...24 VDC, cable 5 m
Lei 585.00
Lei 483.47
In stock
SKU
XS1M12AB120L1
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Inductive proximity sensors XS, inductive sensor XS1 M12, L50mm, brass, Sn2mm, 12...24 VDC, cable 5 m
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M12 |
| Size | 54 mm |
| Body type | Fixed |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Discrete output function | 1 NC |
| Detector flush mounting acceptance | Flush mountable |
| Material | Metal |
| Analogue output range | 4...20 mA |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC |
| Output circuit type | DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
Complementary
| Enclosure material | Nickel plated brass |
|---|---|
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 0...2.5 mm |
| Linearity error | +/- 2 mA |
| Repeat accuracy | <= 3% of Sr |
| Cable composition | 3 x 0.34 mm² |
| Wire insulation material | PVC |
| Switching frequency | <= 1500 Hz |
| Output current drift | 10 PERCENTAGE |
| Current consumption | 4 mA no-load |
| Marking | CE |
Environment
| Product certifications | CSA UL |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 13 CENTIMETER |
| Package 1 width | 6.6 CENTIMETER |
| Package 1 length | 9.4 CENTIMETER |
| Package 1 weight | 0.255 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 5 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.5 KILOGRAM |
| Unit type of package 3 | CAR |
| Number of units in package 3 | 1 |
| Package 3 height | 9.4 CENTIMETER |
| Package 3 width | 13 CENTIMETER |
| Package 3 length | 6.6 CENTIMETER |
| Package 3 weight | 0.255 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS1M12AB120L1 |
| Order Unit | Pce |
