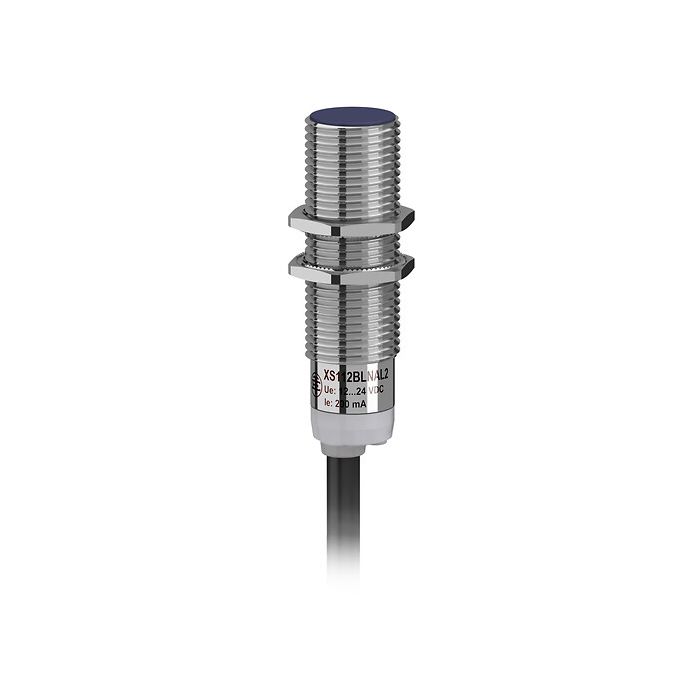

TELEMECANIQUE SENSORS - XS112B3PAL5 - inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, cable 5 m
Lei 234.00
Lei 193.39
In stock
SKU
XS112B3PAL5
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
inductive sensor XS1 M12, L37mm, brass, Sn4mm, 12..24VDC, cable 5 m
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Device application | Mobile equipment |
| Sensor design | Cylindrical M12 |
| Size | 37 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector flush mounting acceptance | Flush mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Complementary
| Enclosure material | Nickel plated brass |
|---|---|
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 2.5...4 mm |
| Differential travel | 1...15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2500 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10 MILLISECOND |
| Delay response | 0.2 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2 MILLISECOND |
Environment
| Product certifications | CSA E2 UL |
|---|---|
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 5 CENTIMETER |
| Package 1 width | 10.5 CENTIMETER |
| Package 1 length | 10.5 CENTIMETER |
| Package 1 weight | 0.1545 KILOGRAM |
| Unit type of package 2 | CAR |
| Number of units in package 2 | 1 |
| Package 2 height | 9.4 CENTIMETER |
| Package 2 width | 13 CENTIMETER |
| Package 2 length | 4.1 CENTIMETER |
| Package 2 weight | 0.166 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 4.5 CENTIMETER |
| Package 3 width | 25 CENTIMETER |
| Package 3 length | 20 CENTIMETER |
| Package 3 weight | 0.166 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS112B3PAL5 |
| Order Unit | Pce |
