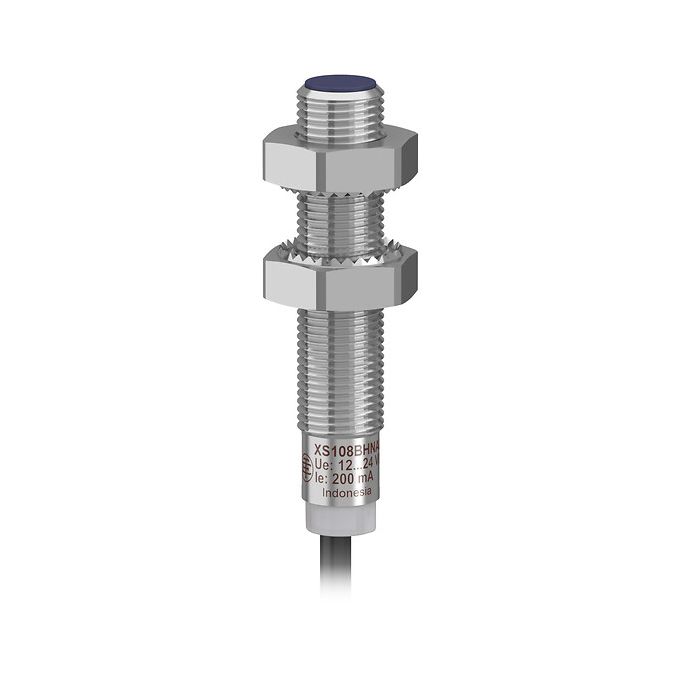

TELEMECANIQUE SENSORS - XS108BLPAL5 - inductive sensor XS1 M8, L42mm, brass, Sn1.5mm, 12..24VDC, cable 5m
Lei 202.00
Lei 166.94
In stock
SKU
XS108BLPAL5
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
inductive sensor XS1 M8, L42mm, brass, Sn1.5mm, 12..24VDC, cable 5m
Main
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M8 |
| Size | 42 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Enclosure material | Nickel plated brass |
| Discrete output function | 1 NO |
| Discrete output type | PNP |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
Complementary
| Detector flush mounting acceptance | Flush mountable |
|---|---|
| Material | Metal |
| ISO thread | M8 x 1 |
| Output circuit type | DC |
| Detection face | Frontal |
| Sensing range | > 0...2.5 mm |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Wire insulation material | PVC |
| Cable composition | 3 x 0.11 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 15 MILLISECOND |
| Delay response | 5 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.3 MILLISECOND |
Environment
| Product certifications | CSA UL |
|---|---|
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 6.6 CENTIMETER |
| Package 1 width | 9.5 CENTIMETER |
| Package 1 length | 13 CENTIMETER |
| Package 1 weight | 0.111 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 10 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 1.6525 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 6.6 CENTIMETER |
| Package 3 width | 13 CENTIMETER |
| Package 3 length | 9.5 CENTIMETER |
| Package 3 weight | 0.111 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XS108BLPAL5 |
| Order Unit | Pce |
