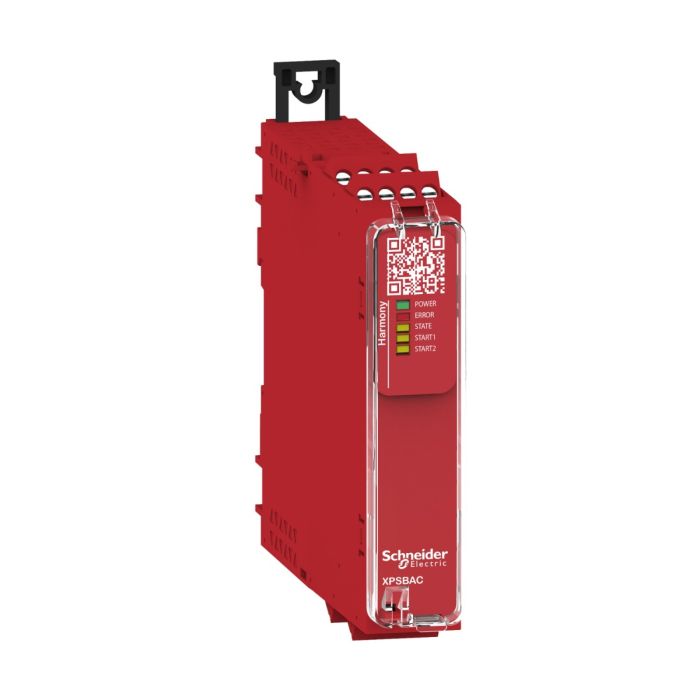

SCHNEIDER Electric - XPSBAC14AP - Preventa XPSBAC safety module, emergency stop / guard monitoring, 4 NO + 1 NC, PL e / SIL 3, 24 V AC/DC
Lei 687.00
Lei 567.77
In stock
Only 5 left
SKU
XPSBAC14AP
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Preventa safety module for emergency stop (2 NC) and protective guard monitoring, 4 NO + 1 NC safety contacts, PL e / category 4 and SIL 3, 24 V AC/DC supply, 22.5 mm DIN rail.
The Schneider Electric Harmony XPSBAC14AP is a Preventa safety module for emergency stop and protective guard monitoring. It monitors a 2 NC emergency stop button or one or two guard limit switches on two redundant channels and, when the button is pressed or the guard is opened, its safety contacts drop out the coils of the motor contactors. The start can be automatic, manual or monitored, so the machine cannot restart by itself after the emergency stop is released. With the safety outputs used correctly it reaches PL e / category 4 (ISO 13849-1) and SIL 3 (IEC 61508, IEC 62061), which is what the Machinery Directive requires for emergency stop circuits on industrial machines.
The module is 22.5 mm wide, mounts on a 35 mm DIN rail, is powered at 24 V AC or DC and has removable screw terminal blocks. Five LEDs show power, error, status and the two start inputs. It pairs with the emergency stop buttons and Preventa / XC safety limit switches available in our Limit Switches section.
| Range | Harmony Safety Automation, Preventa XPSBAC |
|---|---|
| Application | Emergency stop (2 NC) and guard monitoring (1 or 2 limit switches) |
| Safety level | PL e / category 4 (ISO 13849-1), SIL 3 (IEC 61508), SILCL 3 (IEC 62061) for the NO safety contacts |
| Reliability data | MTTFd > 30 years, DCavg >= 99 %, PFHd = 0.95E-09 |
| Safety outputs | 4 NO + 1 NC relay contacts |
| Rated operational current | 5 A AC-1 / 3 A AC-15, 5 A DC-1 / 3 A DC-13 (NO contacts) |
| Thermal current Ith | 6 A, fuse 10 A gG |
| Supply voltage | 24 V AC (-15...+10 %) or 24 V DC (-20...+20 %) |
| Power consumption | 1.5 W (24 V DC), 3.5 VA (24 V AC) |
| Response time | 80 ms at 24 V DC, 150 ms at 24 V AC |
| Type of start | Automatic / manual / monitored |
| Inputs compatible with | NC circuits per ISO 14119 and ISO 13850, XC limit switches, mechanical contacts |
| Signalling | 5 LEDs: power (green), error (red), status, start 1, start 2 (yellow) |
| Connections | Removable screw terminals, 0.2...2.5 mm² |
| Mounting | 35 mm DIN rail; W x H x D = 22.5 x 100 x 120 mm; 0.2 kg |
| Degree of protection | IP20 terminals, IP40 housing |
| Operating temperature | -25...+55 °C |
| Standards / certifications | IEC 60947-5-1, IEC 61508, ISO 13849-1, IEC 62061; TÜV, cULus |
