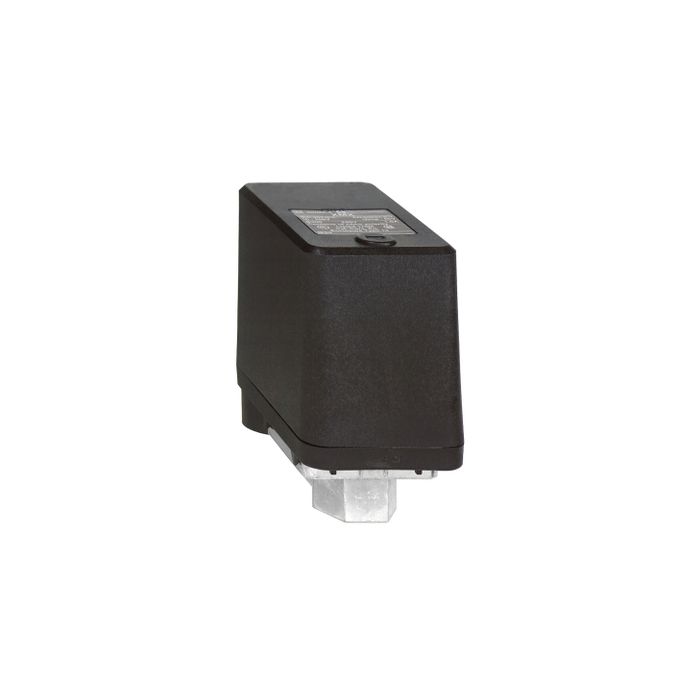

TELEMECANIQUE SENSORS - XMXA12L2135 - Pressure switch XMX, 12 bar, adjustable scale, 1 C/O, 2 thresholds, G 1/4, zinc alloy, sea water 55 °C, Pg 13.5 tapped entries
Lei 379.00
Lei 313.22
In stock
SKU
XMXA12L2135
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pressure switch XMX, 12 bar, adjustable scale, 1 C/O, 2 thresholds, G 1/4, zinc alloy, sea water 55 °C, Pg 13.5 tapped entries
This variant: fluid connection: G 1/4 (female) conforming to ISO 228; materials in contact with fluid: Canvas covered nitrile chromated zinc alloy; controlled fluid: Air (0-55 °C), fresh water (0-55 °C), sea water (0-55 °C); electrical connection: Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm²; cable entry: 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300; contacts: 1 C/O snap action.
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Pressure sensor name | XMX |
| Contacts type and composition | 1 C/O snap action |
| Controlled fluid | Air (0-55 °C), fresh water (0-55 °C), sea water (0-55 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
| Electrical circuit type | Control circuit |
| Setting | Internal |
| Colour of cover | Black opaque |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Fixed differential |
| Local display | Without |
| Enclosure material | PC impregnated with Lexan 500R |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid | Canvas covered nitrile chromated zinc alloy |
Complementary
| Operating position | Any position |
|---|---|
| Operating rate | 10 CYCLE_PER_MINUTE |
Environment
| Standards | CE IEC 60947-5-1 |
|---|---|
| Product certifications | CCC CSA UL |
| Protective treatment | TC |
| Electrical shock protection class | Class I conforming to IEC 536 |
| IP degree of protection | IP54 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 6.2 CENTIMETER |
| Package 1 width | 11.5 CENTIMETER |
| Package 1 length | 17 CENTIMETER |
| Package 1 weight | 0.5 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 20 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 10.773 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XMXA12L2135 |
| Order Unit | Pce |
