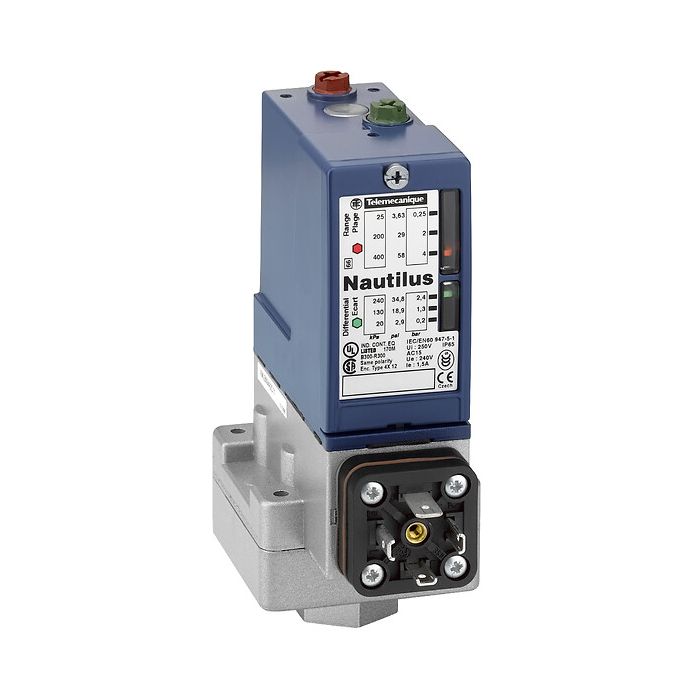

TELEMECANIQUE SENSORS - XMLBM02V2C11 - vacuum switch XMLB -1 bar - adjustable scale 2 thresholds - 1 C/O
Lei 1,367.00
Lei 1,129.75
In stock
SKU
XMLBM02V2C11
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
vacuum switch XMLB -1 bar - adjustable scale 2 thresholds - 1 C/O
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Product or component type | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical vacuum sensor |
| Device short name | XMLB |
| Controlled fluid | Air (0-70 °C), fresh water (0-70 °C), hydraulic oil (0-70 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | 1 male connector EN 175301-803-A (ex DIN43650), 4 pins |
| Contacts type and composition | 1 C/O |
| Product specific application | Not applicable |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Electrical circuit type | Control circuit |
| Scale type | Adjustable differential |
| Local display | With |
| Pressure actuator | Diaphragm |
| Materials in contact with fluid | 304L stainless steel nitrile zinc alloy |
| Enclosure material | Zinc alloy |
Complementary
| Terminal block type | 4 terminals |
|---|---|
| Operating rate | 120 cyc/mn |
| Auxiliary contacts operation | Snap action |
| Contacts material | Silver contacts |
| Resistance across terminals | 25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
| Setting | External |
Environment
| Standards | CE CSA C22.2 No 14 IEC 60947-5-1 UL 508 |
|---|---|
| Product certifications | BV CCC CSA LROS (Lloyds register of shipping) UL |
| Protective treatment | TC standard version |
| Operating position | Any position |
| Vibration resistance | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class | Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030 |
| IP degree of protection | IP65 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 7.2 CENTIMETER |
| Package 1 width | 13.7 CENTIMETER |
| Package 1 length | 10.8 CENTIMETER |
| Package 1 weight | 1.086 KILOGRAM |
| Unit type of package 2 | S01 |
| Number of units in package 2 | 5 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.565 KILOGRAM |
| Unit type of package 3 | S02 |
| Number of units in package 3 | 5 |
| Package 3 height | 15 CENTIMETER |
| Package 3 width | 30 CENTIMETER |
| Package 3 length | 40 CENTIMETER |
| Package 3 weight | 5.885 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XMLBM02V2C11 |
| Order Unit | Pce |
