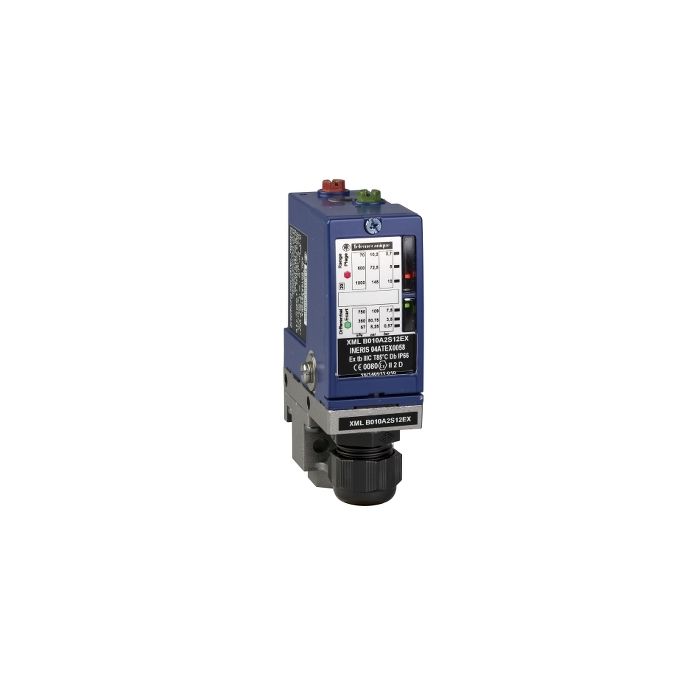

TELEMECANIQUE SENSORS - XMLB010A2S12EX - Pressure switch XMLB, 10 bar, adjustable scale, 1 C/O, 2 thresholds, G 1/4, zinc alloy, air/water/oil 70 °C
Lei 3,086.00
Lei 2,550.41
In stock
SKU
XMLB010A2S12EX
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Pressure switch XMLB, 10 bar, adjustable scale, 1 C/O, 2 thresholds, G 1/4, zinc alloy, air/water/oil 70 °C
This variant: fluid connection: G 1/4 (female) conforming to ISO 228; materials in contact with fluid: Nitrile zinc alloy; controlled fluid: Air (0-70 °C), hydraulic oil (0-70 °C), water (0-70 °C).
Main
| Range of product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure sensor type | Electromechanical pressure sensor |
| Product specific application | ATEX D |
| Pressure sensor name | XMLB |
| Electrical circuit type | Control circuit |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | With |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Pressure actuator | Diaphragm |
| Controlled fluid | Air (0-70 °C), hydraulic oil (0-70 °C), water (0-70 °C) |
| Materials in contact with fluid | Nitrile zinc alloy |
| Enclosure material | Zinc alloy |
Complementary
| Terminal block type | 4 terminals |
|---|---|
| Auxiliary contacts operation | Snap action |
| Contacts material | Silver contacts |
| Setting | External |
| Terminals description ISO n°1 | (13-14-11-12)OF |
Environment
| Standards | EN/IEC 60079-0 EN/IEC 60079-31 |
|---|---|
| Directives | 2014/34/EU - ATEX directive |
| Product certifications | IEC-Ex INE 17.0019 INERIS 04ATEX0058 |
| Marking | II2 D-Ex tb IIIC T85°C Db IP66 |
| Protective treatment | TC |
| Operating position | Any position |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 9 CENTIMETER |
| Package 1 width | 9.5 CENTIMETER |
| Package 1 length | 16 CENTIMETER |
| Package 1 weight | 0.785 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 12 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 9.922 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XMLB010A2S12EX |
| Order Unit | Pce |
