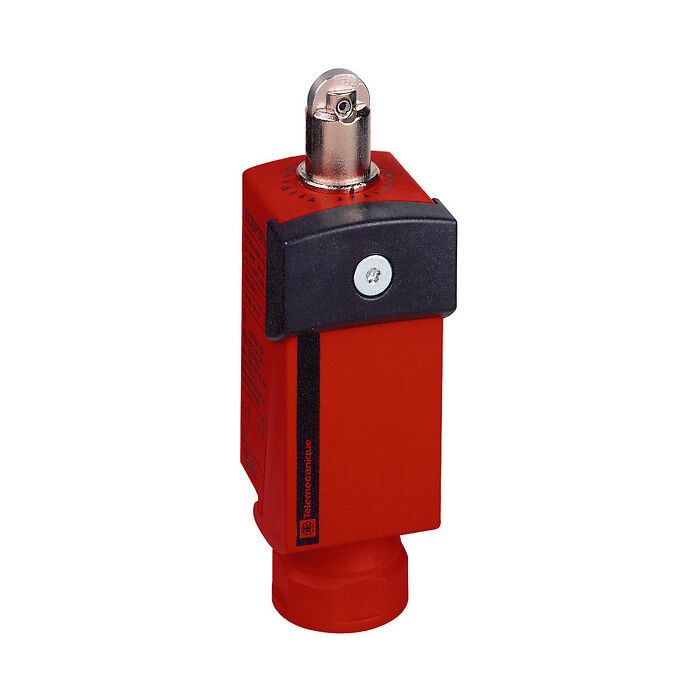

TELEMECANIQUE SENSORS - XCSPA1715566 - Safety switch, Telemecanique Safety switches XCS, plastic XCSPA 1NC + 1 NO, snap action, M12-4 pin Male connector
Lei 274.00
Lei 226.45
In stock
SKU
XCSPA1715566
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Safety switch, Telemecanique Safety switches XCS, plastic XCSPA 1NC + 1 NO, snap action, M12-4 pin Male connector
Main
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety switch |
| Component name | XCSPA |
| Design | Compact |
| Material | Plastic |
| Contacts type and composition | 1 NC + 1 NO |
| Locking options description | Without locking of actuator |
| Head type | Key operated turret head |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Insulation | Double insulated |
| Contact operation | Snap action |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material | PA (polyamide) |
| Head material | PA (polyamide) |
| Positive opening | With NC contact |
| IP degree of protection | IP67 conforming to IEC 60529, IP67 conforming to IEC 60947-5-1 |
| Electrical connection | Connector M12 male, 4 pins |
Complementary
| Product certifications | CSA UL |
|---|---|
| Standards | CSA C22.2 No 14 EN 1088/ISO 14119 IEC 60204-1 IEC 60947-5-1 ISO 12100 UL 508 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Operating rate | 10 cyc/mn for maximum durability |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
Environment
| Protective treatment | TC |
|---|
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.5 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Package 1 length | 13 CENTIMETER |
| Package 1 weight | 0.117 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 55 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 6.672 KILOGRAM |
| Unit type of package 3 | P06 |
| Number of units in package 3 | 880 |
| Package 3 height | 75 CENTIMETER |
| Package 3 width | 60 CENTIMETER |
| Package 3 length | 80 CENTIMETER |
| Package 3 weight | 114.752 KILOGRAM |
| Indivisible sale quantity | 1 |
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCSPA1715566 |
| Order Unit | Pce |
