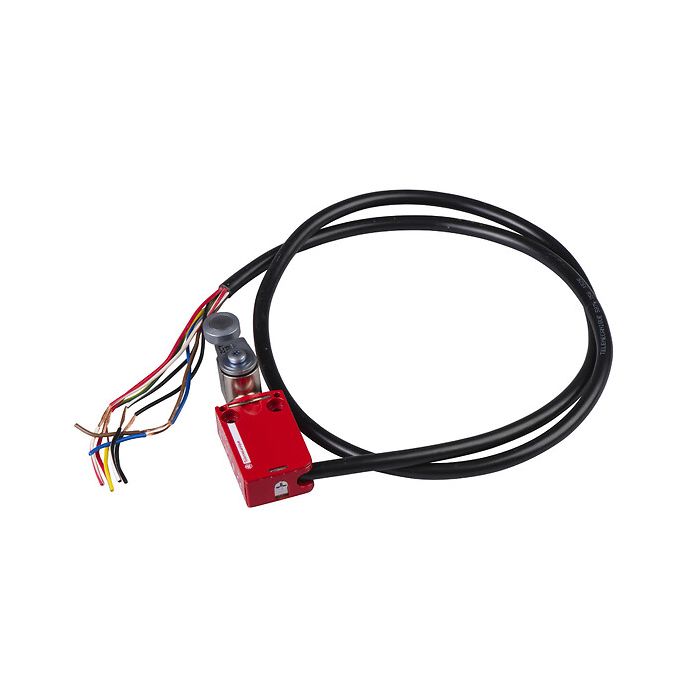

TELEMECANIQUE SENSORS - XCSM4116L2 - Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, rotary lever, 2 NC + 2 NO, cable 2 m
Lei 317.00
Lei 261.98
In stock
SKU
XCSM4116L2
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, rotary lever, 2 NC + 2 NO, cable 2 m
Main
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety limit switch |
| Component name | XCSM |
| Design | Miniature |
| Material | Metal |
| Head type | Rotary head |
| Protection technology | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Type of approach | Lateral approach |
| Type of operator | Steel roller lever |
| Contact operation | Snap action |
| Contacts type and composition | 1 NC + 1 NC + 1 NO + 1 NO |
| Cable composition | 9 x 0.34 mm² |
Complementary
| Electrical connection | Pre-cabled |
|---|---|
| Positive opening | With NC contact |
| Switch actuation | By 30° cam |
| Fixing mode | By the body |
| Contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Repeat accuracy | 0.05 mm on the tripping points |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Body material | Zamak |
| Head material | Zamak |
| Safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
Environment
| Protective treatment | TC |
|---|---|
| Product certifications | CSA UL |
| Electrical shock protection class | Class I, class I conforming to IEC 61140 |
| Standards | CSA C22.2 No 14 EN 1088 IEC 60204-1 IEC 60947-5-1 UL 508 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| IK degree of protection | IK06 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.3 CENTIMETER |
| Package 1 width | 12.5 CENTIMETER |
| Package 1 length | 12.5 CENTIMETER |
| Package 1 weight | 0.313 KILOGRAM |
| Unit type of package 2 | S03 |
| Number of units in package 2 | 35 |
| Package 2 height | 30 CENTIMETER |
| Package 2 width | 40 CENTIMETER |
| Package 2 length | 30 CENTIMETER |
| Package 2 weight | 8.538 KILOGRAM |
| Unit type of package 3 | BAG |
| Number of units in package 3 | 1 |
| Package 3 height | 3 CENTIMETER |
| Package 3 width | 13 CENTIMETER |
| Package 3 length | 14 CENTIMETER |
| Package 3 weight | 0.313 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCSM4116L2 |
| Order Unit | Pce |
