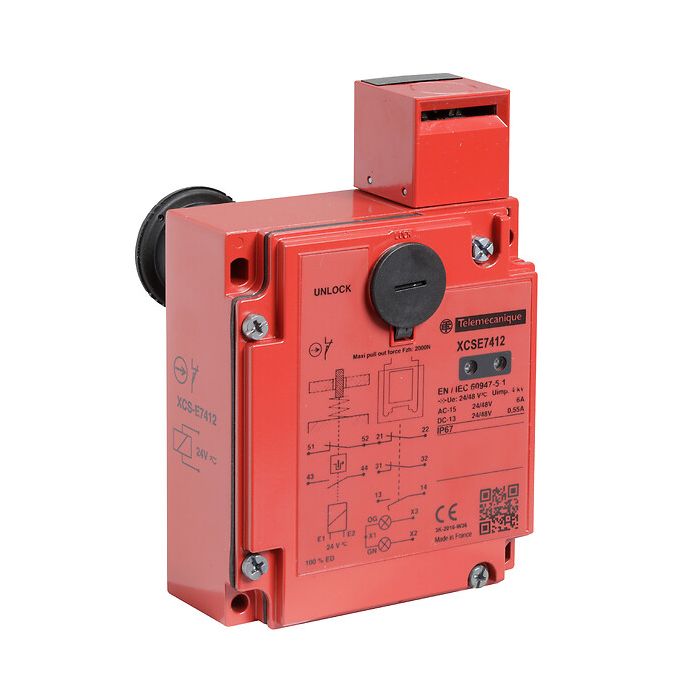

TELEMECANIQUE SENSORS - XCSE7412 - Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V
Lei 2,448.00
Lei 2,023.14
In stock
SKU
XCSE7412
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Safety switch, Telemecanique Safety switches XCS, metal 2NC + 1 NO, slow break, 2 entries tapped M20, 24 V
Main
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Product or component type | Safety switch |
| Component name | XCSE |
| Design | Rectangular |
| Material | Metal |
| Head type | Key operated turret head |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Solenoid contacts type and composition | 1 NC + 1 NO (slow-break, simultaneous) |
| Cable entry | 2 entries tapped for M20 x 1.5 |
| [Us] rated supply voltage | 24 V - 20...10 % |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Locking options description | With interlocking, locking by solenoid |
| Local signalling | 2 LEDs (green or orange) for guard open/guard closed and locked |
| Signalling circuit voltage | 24/48 V (voltage limits: 20...52 V) |
Complementary
| Supply voltage type | AC/DC |
|---|---|
| Supply frequency | 50/60 Hz |
| Positive opening | With NC contact |
| Protection type | Overvoltage protection for signalling circuit |
| Operating rate | 10 cyc/mn for maximum durability |
| Signalling circuit type | AC/DC |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Body material | Zamak |
| Head material | Zamak |
| Actuator force for extraction | 20 NEWTON |
| Safety reliability data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
Environment
| Protective treatment | TC |
|---|---|
| Product certifications | CSA UL |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| Standards | CSA C22.2 No 14 EN 1088/ISO 14119 IEC 60204-1 IEC 60947-5-1 ISO 12100 UL 508 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 12.6 CENTIMETER |
| Package 1 width | 13 CENTIMETER |
| Package 1 length | 18.6 CENTIMETER |
| Package 1 weight | 1.41 KILOGRAM |
| Unit type of package 2 | S02 |
| Number of units in package 2 | 4 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 5.958 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCSE7412 |
| Order Unit | Pce |
