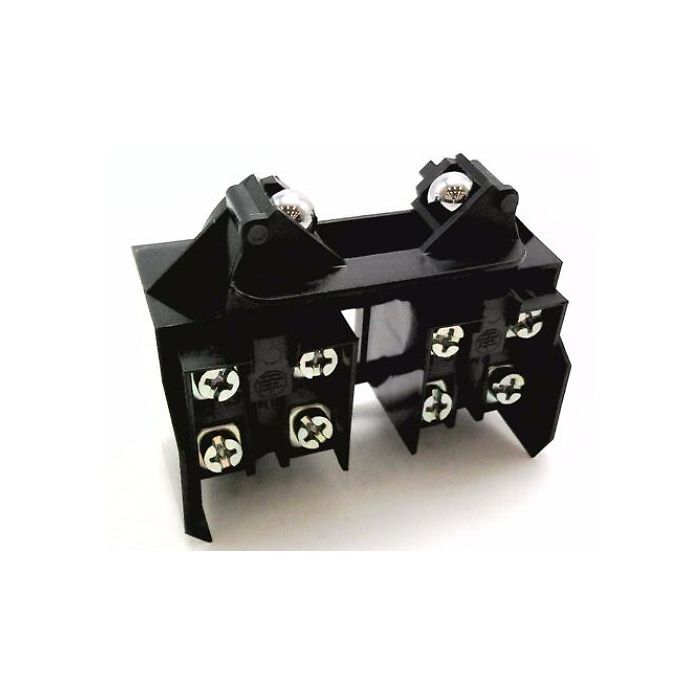

TELEMECANIQUE SENSORS - XCRZ15 - Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2X(1NO+NC), slow break, break before make
Lei 560.00
Lei 462.81
In stock
SKU
XCRZ15
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Limit switch contact block with mounting plate, Limit switches XC Standard, XCRZ, 2X(1NO+NC), slow break, break before make
Main
| Range of product | OsiSense XC |
|---|---|
| Device short name | XCRZ |
| Product compatibility | XCRA XCRB XCRE XCRF |
| Product or component type | Limit switch contact block with mounting plate |
| Series name | Special format |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contact operation | Slow-break, break before make |
| Contacts material | Silver plated contacts |
| Positive opening | With |
| Contacts insulation form | Zb |
Complementary
| Contact code designation | - |
|---|---|
| Resistance across terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
| Compatibility code | XCRZ |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 6 CENTIMETER |
| Package 1 width | 3.5 CENTIMETER |
| Package 1 length | 6 CENTIMETER |
| Package 1 weight | 0.064 KILOGRAM |
| Unit type of package 2 | BAG |
| Number of units in package 2 | 1 |
| Package 2 height | 6 CENTIMETER |
| Package 2 width | 6 CENTIMETER |
| Package 2 length | 3.5 CENTIMETER |
| Package 2 weight | 0.064 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCRZ15 |
| Order Unit | Pce |
