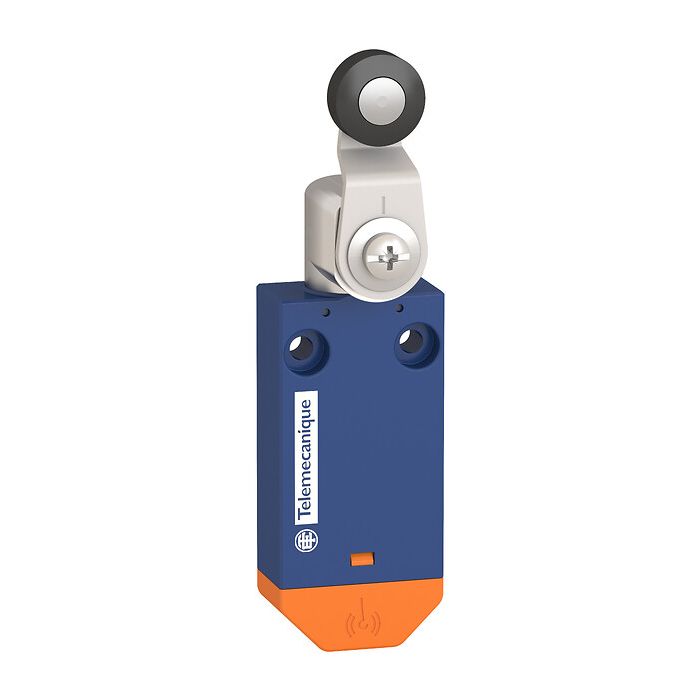

TELEMECANIQUE SENSORS - XCMW115 - Wireless limit switch, Limit switches XC Standard, XCMW, plastic roller lever
Lei 765.00
Lei 632.23
In stock
SKU
XCMW115
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Wireless limit switch, Limit switches XC Standard, XCMW, plastic roller lever
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Series name | Miniature format |
| Product or component type | Wireless limit switch |
| Device short name | XCMW |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Rotary head |
Complementary
| Body material | Plastic |
|---|---|
| Head material | Metal |
| Lever material | Metal |
| Fixing mode | By 2 screws |
| Type of operator | Spring return roller lever thermoplastic |
| Switch actuation | By 30° cam |
| Communication network type | ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4 |
| Type of approach | Lateral approach, 2 directions |
| Electrical composition code | PW1 |
| Response time | <= 2 ms |
| Contact operation | Snap action |
| Operating rate | 60 CYCLE_PER_MINUTE |
| Switching operation per year | 3600 |
Environment
| Electromagnetic compatibility | Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) |
|---|---|
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK04 conforming to IEC 62262 |
| Directives | 1999/5/EC - R&TTE directive 2004/108/EC - electromagnetic compatibility |
| Standards | IEC 60947-1 IEC 60947-5-1 |
| Radio agreement | IC conforming to RSS, FCC conforming to RCM |
Packing Units
| Unit type of package 1 | PCE |
|---|---|
| Number of units in package 1 | 1 |
| Package 1 height | 3.3 CENTIMETER |
| Package 1 width | 5 CENTIMETER |
| Unit type of package 2 | S01 |
| Package 1 length | 13 CENTIMETER |
| Number of units in package 2 | 22 |
| Package 1 weight | 0.098 KILOGRAM |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 15 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.323 KILOGRAM |
| Indivisible sale quantity | 1 |
Documents & Downloads
Write Your Own Review
| Manufacturer | TELEMECANIQUE SENSORS |
|---|---|
| Manufacturer code | XCMW115 |
| Order Unit | Pce |
